WFM Data Infrastructure and Integration Architecture

From WFM Labs

WFM data infrastructure and integration architecture encompasses the systems, data flows, APIs, and integration patterns that connect workforce management platforms to the broader technology ecosystem of a contact center or enterprise — including automatic call distribution (ACD) systems, customer relationship management (CRM) platforms, human resources information systems (HRIS), quality management tools, and real-time analytics engines. The quality, latency, and reliability of these integrations directly determine the accuracy of forecasting models, the fidelity of real-time management, and the scope of automation that is achievable. Kimball and Ross's foundational work on data warehouse design establishes the dimensional modeling principles that remain applicable to WFM data stores even in modern cloud-native architectures.[1] Gartner's Magic Quadrant for Workforce Engagement Management identifies data integration capability as a primary differentiator among WFM platform vendors.[2]

The WFM Data Ecosystem

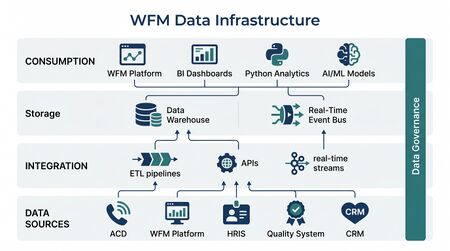

A WFM platform does not generate primary data — it consumes data produced by adjacent systems and produces planning artifacts (forecasts, schedules, intraday adjustments) that are consumed by operational systems. Understanding the data ecosystem requires mapping three layers:

  1. Source systems — systems of record that generate the raw operational data WFM consumes
  2. Integration layer — the APIs, event streams, ETL processes, and data buses that move data between systems
  3. Consumption layer — WFM platform modules and downstream analytics tools that use integrated data

Primary Source Systems

Source System Data Provided WFM Use
ACD / Contact Center Platform Volume by queue/interval, handle time, abandonment, agent state Volume forecasting, intraday management
IVR / Conversational AI Self-service containment, deflection rates, escalation reasons Containment modeling, demand decomposition
CRM Contact reasons, customer segments, case complexity, campaign activity Demand signals, forecast enrichment
HRIS Headcount, hire dates, terminations, leave, skills Capacity supply modeling, roster management
Quality Management Evaluation scores, coaching records, agent proficiency Skill-based scheduling, coaching demand planning
Payroll / Time & Attendance Actual hours worked, exception types, adherence Adherence reporting, cost modeling
Learning Management System Training completion, certifications, skill readiness Skill availability forecasting

Integration Patterns

Batch ETL

Batch extract-transform-load (ETL) processes move data from source systems to WFM platforms on a scheduled basis, typically nightly or every few hours. Batch ETL is adequate for historical reporting, long-range forecasting, and HR data synchronization — use cases where data latency of hours is acceptable. The primary risk of batch-only integration is that intraday operations are blind to real-time system state, reducing the effectiveness of Real-Time Operations functions.

API-Based Integration

REST and GraphQL APIs enable on-demand data retrieval between systems. In WFM contexts, APIs are used for:

  • Pulling current agent state and queue statistics from ACD platforms at defined intervals (typically 30–60 seconds for intraday management)
  • Pushing schedule data to ACD systems for skill routing alignment
  • Synchronizing headcount changes from HRIS to WFM rosters

API latency and rate limiting are practical constraints. Most ACD platforms expose interval statistics with a minimum granularity of 15–30 minutes for historical data, and near-real-time agent state data with latencies of 15–60 seconds.

Event-Driven Streaming

Event streaming platforms (Apache Kafka, cloud-native equivalents) enable continuous, low-latency data movement between systems. The Workforce Demand Signal Architecture article describes event streaming patterns for demand forecasting in detail. In WFM contexts, streaming integration is used for:

  • Real-time agent adherence tracking (agent state changes trigger immediate adherence calculations)
  • Intraday queue alerts (queue depth or service level breaches trigger automated responses)
  • AI platform performance signals feeding Real-Time Schedule Adjustment tools

Streaming architectures introduce operational complexity — topic management, consumer group coordination, offset management, schema evolution — that batch ETL avoids. The tradeoff is latency: streaming delivers seconds-level freshness versus hours for batch.

Webhook and Push Patterns

Some source systems push data to WFM platforms via webhook callbacks rather than requiring the WFM system to poll. Telephony platforms may push call detail records (CDRs) at call completion; workforce management platforms may push schedule change notifications to agent mobile apps. Push patterns reduce polling overhead but require the receiving system to expose a stable, authenticated endpoint.

Data Latency Requirements by WFM Function

Different WFM functions have materially different latency tolerance:

WFM Function Acceptable Latency Integration Pattern
Long-range capacity planning Days to weeks Batch ETL
Volume forecasting (weekly/monthly) Hours Batch ETL or daily API pull
Schedule Generation Hours Batch ETL
Intraday management 15–60 seconds API polling or streaming
Adherence monitoring 15–30 seconds Streaming or API polling
AI platform performance monitoring 5–15 seconds Streaming

Mismatching integration patterns to latency requirements is a common architectural failure — deploying batch ETL for intraday use cases, or building streaming pipelines for data that only needs daily refresh, both produce operational or cost inefficiencies.

Dimensional Modeling for WFM Data Warehouses

Kimball and Ross's dimensional modeling approach structures historical WFM data for analytics and reporting. The standard WFM data warehouse includes:

Fact Tables

  • Contact fact — one row per contact handled; dimensions: date, time interval, queue, agent, contact type, disposition; measures: handle time, hold time, wrap time, transfers
  • Agent state fact — one row per agent state segment; dimensions: date, interval, agent, state type; measures: duration
  • Schedule fact — one row per scheduled interval per agent; dimensions: date, interval, agent, activity type; measures: planned hours
  • Adherence fact — comparison of scheduled versus actual state at interval level

Dimension Tables

  • Agent dimension (agent ID, name, hire date, skills, team, site)
  • Queue/skill dimension (queue ID, channel, service line, business unit)
  • Date and time interval dimensions
  • Contact type and disposition hierarchies

Well-structured dimensional models enable the Reporting and Analytics Framework and Reporting Automation and Self Service Analytics capabilities that organizations at L3+ maturity deploy.

Integration Architecture by Maturity Level

Level 1–2

At early maturity levels, WFM data infrastructure is typically characterized by manual exports from ACD platforms (CSV or spreadsheet), manual headcount data maintenance, and no real-time integration. Forecasting Methods rely on manually assembled historical data. Reporting is produced manually from disparate sources.

Level 3

Level 3 organizations deploy formal ETL pipelines from ACD and HRIS to WFM platforms. API-based schedule pushback to ACD enables skill routing alignment. A basic data warehouse or WFM platform reporting module provides interval-level historical data. Real-time adherence monitoring is typically in place via API polling.

Level 4

Level 4 organizations extend integration to include CRM demand signals, quality management data, and learning management system inputs. Streaming or high-frequency API polling supports real-time intraday management. The Reporting and Analytics Framework is mature, with self-service analytics for operational stakeholders.

Level 5

Level 5 organizations operate event-driven architectures where AI platform performance signals, CRM campaign events, and external demand signals flow in real time to WFM and capacity planning systems. The WFM Ecosystem Architecture article describes the full Level 5 integration topology. Integration is bidirectional: WFM outputs (schedule changes, skill assignments) flow back to ACD routing configurations automatically.

Common Integration Failure Modes

  • Latency mismatch — using batch ETL for intraday use cases, producing stale data in real-time dashboards
  • Schema drift — source system upgrades changing data structures without coordinated WFM platform updates, silently corrupting data feeds
  • Clock synchronization errors — misaligned timestamps between ACD interval data and WFM interval boundaries, producing systematic reporting errors
  • Authentication token expiry — API integrations that fail silently when credentials expire, producing data gaps rather than explicit errors
  • Fan-out without back-pressure — streaming architectures where a slow consumer (WFM analytics) falls behind a fast producer (ACD events), causing consumer lag and eventual data loss

Maturity Model Considerations

The integration architecture is both an enabler and a constraint for WFM maturity advancement. Organizations cannot achieve Level 3 ML-based forecasting without reliable historical data feeds; cannot achieve Level 4 intraday automation without low-latency ACD integration; cannot achieve Level 5 unified workforce planning without AI platform integration. Data infrastructure investment is a prerequisite for capability advancement, not a consequence of it.

Related Concepts

References

  1. ↑ Kimball, R., & Ross, M. (2013). The Data Warehouse Toolkit: The Definitive Guide to Dimensional Modeling (3rd ed.). Wiley.
  2. ↑ Gartner. (2024). Magic Quadrant for Workforce Engagement Management. Gartner, Inc.
