Data Visualization for WFM

Core WFM visualizations: staffing curves, heatmaps, comparisons, and correlations.

Data visualization for workforce management transforms raw operational data—interval volumes, staffing counts, handle times, adherence percentages—into visual representations that enable faster, more accurate decision-making across the planning lifecycle. While data manipulation and reporting frameworks focus on collecting and structuring data, visualization addresses the critical last mile: communicating insights to human decision-makers in a form they can understand at a glance.

Contact centers generate enormous volumes of time-series data—often thousands of intervals per day across dozens of metrics, queues, and skill groups. A 500-seat operation tracking 15-minute intervals across 10 queues produces over 4,000 data points daily before factoring in agent-level metrics. Spreadsheets containing this data are dense and difficult to interpret. A well-constructed chart reveals the story buried in the numbers: where forecast accuracy broke down, when staffing fell short, which intervals drove service level failures, and how trends are shifting over weeks and months.

WFM practitioners who can visualize data effectively close the gap between analysis and action. A capacity plan presented as a table of numbers lands differently than the same plan presented as a staffing curve overlaid with demand—executives grasp the shortage immediately, planners see exactly which intervals need attention, and operations leaders understand the cost tradeoffs without wading through rows and columns. This article covers the core visualizations used in WFM, the Python libraries available to create them, and the principles that separate useful charts from misleading or confusing ones.

Why Visualization Matters in WFM

The gap between data analysis and operational action is where many WFM teams lose effectiveness. An analyst may build a sophisticated forecast accuracy model that identifies systematic Thursday afternoon under-forecasting, but if the finding is buried in a spreadsheet tab, it never reaches the planning team. Visualization bridges this gap by making patterns perceptible.

Several characteristics of WFM data make visualization particularly valuable:

• Time-series dominance — Nearly every WFM metric is measured against time intervals. Line charts, area charts, and heatmaps are natural fits for interval-level data that would be impenetrable in tabular form.
• Multi-dimensional relationships — Service Level, Occupancy, Average Handle Time, staffing, and volume interact in complex ways. Visualizations can show these relationships simultaneously—for example, a dual-axis chart showing service level dropping as occupancy exceeds a threshold.
• Pattern recognition — Humans excel at recognizing visual patterns: seasonality, trends, outliers, and cyclical behavior. A volume chart immediately reveals the Monday spike, the lunch dip, and the gradual ramp that a column of numbers obscures.
• Stakeholder diversity — WFM teams communicate with executives, operations leaders, team leads, finance, and frontline agents. Each audience needs different granularity and emphasis. Visualization makes it possible to create audience-appropriate views from the same underlying data.
• Speed of interpretation — Real-time analysts monitoring intraday performance need to assess the state of operations in seconds, not minutes. A well-designed wallboard conveys more information faster than any report.

Edward Tufte's foundational principle applies directly: the purpose of a data visualization is to reveal data—to show patterns, relationships, and anomalies that would otherwise remain hidden. In WFM, hidden patterns mean missed opportunities to improve staffing, reduce costs, and protect service quality.

Core WFM Visualizations

Certain chart types appear repeatedly across WFM operations because the underlying analytical questions recur in every contact center. These core visualizations form the visual vocabulary of the discipline.

Interval Staffing Curves

The interval staffing curve—a line chart showing required staff, scheduled staff, and actual staff by interval across a day—is the single most important visualization in WFM. It answers the fundamental question: do we have the right people at the right time?

A typical staffing curve overlays three to four lines on a 15-minute or 30-minute interval axis:

• Required staff (derived from Erlang C or simulation models based on forecast volume and target service level)
• Scheduled staff (net of known shrinkage)
• Actual staff (logged-in agents after real-time shrinkage, absenteeism, and adherence loss)
• Forecast volume (sometimes shown on a secondary axis for context)

The visual gaps between these lines tell the operational story. A persistent gap between required and scheduled staff reveals a structural staffing shortfall that scheduling alone cannot fix—it requires hiring or overtime. A gap between scheduled and actual staff points to adherence or shrinkage problems. When all lines converge, the operation is well-calibrated.

import matplotlib.pyplot as plt
import matplotlib.dates as mdates
import pandas as pd
import numpy as np

# Sample interval data
intervals = pd.date_range("2026-05-13 07:00", "2026-05-13 21:00", freq="30min")
np.random.seed(42)
required = np.array([45, 52, 68, 82, 95, 105, 110, 108, 100, 88, 92, 98,
                     102, 95, 85, 78, 72, 68, 62, 55, 48, 42, 38, 32,
                     28, 25, 22, 20])
scheduled = required + np.random.randint(-5, 8, size=len(required))
actual = scheduled - np.random.randint(2, 10, size=len(required))

fig, ax = plt.subplots(figsize=(14, 6))
ax.plot(intervals, required, label="Required", linewidth=2, color="#d32f2f")
ax.plot(intervals, scheduled, label="Scheduled", linewidth=2, color="#1976d2")
ax.fill_between(intervals, actual, scheduled, alpha=0.15, color="#ff9800",
                label="Shrinkage gap")
ax.plot(intervals, actual, label="Actual", linewidth=2, color="#388e3c",
        linestyle="--")
ax.xaxis.set_major_formatter(mdates.DateFormatter("%H:%M"))
ax.set_xlabel("Interval")
ax.set_ylabel("Agents")
ax.set_title("Interval Staffing Curve — May 13, 2026")
ax.legend(loc="upper right")
ax.grid(True, alpha=0.3)
plt.tight_layout()
plt.savefig("staffing_curve.png", dpi=150)

Forecast vs Actual Overlays

Forecast accuracy analysis depends on visualizing how predicted values compare with actuals. The standard approach overlays forecast and actual volumes on the same time axis, with shading or annotation to highlight deviations.

Effective forecast-vs-actual charts include:

• Shaded regions showing the magnitude and direction of error (over-forecast vs under-forecast)
• A secondary panel or annotation showing error percentage by interval
• Trend lines across multiple days to reveal systematic bias

These charts directly support Forecast Accuracy Metrics analysis and help planners identify whether errors are random (acceptable) or systematic (actionable).

Service Level Heatmaps

Heatmaps use color intensity to represent a metric's value across two dimensions—typically day-of-week on one axis and interval-of-day on the other. For Service Level, a heatmap immediately reveals which day-interval combinations consistently miss target: red cells cluster around Monday mornings and Friday afternoons, while green cells dominate mid-week mid-morning.

Heatmaps are powerful because they compress an entire week's interval-level performance into a single view. A table containing the same data would have 672 cells (7 days x 96 fifteen-minute intervals)—unreadable in tabular form but instantly interpretable as a color grid.

import seaborn as sns
import numpy as np
import matplotlib.pyplot as plt

days = ["Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun"]
hours = [f"{h}:00" for h in range(7, 22)]
np.random.seed(42)
sl_data = np.random.uniform(0.65, 0.95, size=(len(hours), len(days)))
sl_data[0:3, 0] = np.random.uniform(0.55, 0.70, size=3)  # Monday morning
sl_data[10:13, 4] = np.random.uniform(0.58, 0.72, size=3)  # Friday afternoon

fig, ax = plt.subplots(figsize=(10, 8))
sns.heatmap(sl_data, xticklabels=days, yticklabels=hours,
            cmap="RdYlGn", vmin=0.5, vmax=1.0, annot=True, fmt=".0%",
            linewidths=0.5, ax=ax)
ax.set_title("Service Level by Day and Hour")
ax.set_ylabel("Hour")
ax.set_xlabel("Day of Week")
plt.tight_layout()
plt.savefig("sl_heatmap.png", dpi=150)

Schedule Coverage Charts

Schedule coverage charts compare the number of agents scheduled against the requirement curve, segmented by shift type, skill group, or team. Stacked area or stacked bar charts work well here—each color represents a shift pattern or team, and the total height shows aggregate coverage against a requirement line overlay.

These charts help planners identify which shift patterns contribute to overstaffing during off-peak hours and which gaps remain during peak demand. They are essential tools for shift bid design, overtime targeting, and VTO (voluntary time off) planning.

AHT Trend Analysis

Average Handle Time trends over time reveal operational dynamics that point totals and averages hide. A line chart showing weekly average AHT by call type, with confidence intervals or control limits, can distinguish between random variation and genuine process changes—a new product launch increasing handle complexity, a system upgrade reducing wrap time, or a training cohort ramping up.

Control chart formatting (mean line plus upper and lower control limits at ±2 or ±3 standard deviations) applies statistical rigor to AHT visualization and prevents overreaction to normal variation.

Python Visualization Libraries

Python has become the dominant language for data visualization in analytical work, supported by a mature ecosystem of libraries. Each library occupies a different position on the spectrum from low-level control to high-level convenience.

Matplotlib — The Foundation

Matplotlib is the foundational Python visualization library. Nearly every other Python charting library either builds on Matplotlib or was created as a reaction to it. It provides fine-grained control over every element of a chart: axes, labels, colors, line styles, annotations, legends, and layout.

Strengths for WFM:

• Precise control over multi-axis charts (volume on left axis, service level on right axis)
• Publication-quality static images for reports and presentations
• Extensive customization for branding and formatting requirements
• Strong Jupyter notebook integration

Limitations:

• Verbose syntax for common chart types—a simple bar chart may require 10+ lines
• No built-in interactivity (hover tooltips, zoom, pan)
• Steep learning curve for complex layouts

Matplotlib is the right choice when producing static charts for formal reports, executive presentations, or any context where the chart must look exactly right and interactivity is unnecessary.

Seaborn — Statistical Visualization

Seaborn builds on Matplotlib and provides a high-level interface for statistical graphics. It excels at distribution analysis, categorical comparisons, and matrix visualizations—all common in WFM analytics.

Key chart types for WFM:

• Box plots and violin plots for comparing AHT distributions across teams, call types, or time periods
• Heatmaps for service level, adherence, or volume patterns by day and interval (as shown above)
• Pair plots for exploring relationships between multiple WFM metrics simultaneously
• Regression plots for visualizing trends with confidence intervals

Seaborn's default aesthetics are cleaner than Matplotlib's defaults, reducing the formatting work needed for presentable charts.

Plotly — Interactive Charts

Plotly produces interactive HTML-based charts with hover tooltips, zoom, pan, and click-to-filter capabilities. For WFM teams building internal tools or browser-based dashboards, Plotly transforms static analysis into explorable data.

WFM use cases that benefit from interactivity:

• Intraday dashboards where analysts hover over intervals to see exact values
• Forecast comparison tools where users toggle between forecast versions
• Capacity planning scenarios where stakeholders explore different staffing models
• Long-range trend analysis where zooming into specific date ranges is valuable

Plotly integrates natively with Jupyter notebooks and with web frameworks like Dash (discussed below). Its Express API provides concise syntax for common chart types:

import plotly.express as px
import pandas as pd

df = pd.DataFrame({
    "interval": pd.date_range("2026-05-13 07:00", periods=28, freq="30min"),
    "forecast": [120, 145, 180, 210, 240, 265, 280, 275, 260, 230, 235,
                 250, 260, 245, 220, 200, 185, 170, 155, 140, 125, 110,
                 100, 90, 80, 72, 65, 58],
    "actual":   [115, 150, 175, 225, 250, 258, 290, 268, 255, 240, 228,
                 255, 270, 238, 215, 205, 180, 175, 148, 135, 130, 108,
                 95, 88, 82, 70, 60, 55]
})

fig = px.line(df, x="interval", y=["forecast", "actual"],
              title="Forecast vs Actual Volume — May 13, 2026",
              labels={"value": "Contacts", "interval": "Interval"})
fig.update_layout(hovermode="x unified")
fig.show()

Altair — Declarative Grammar

Altair implements the Vega-Lite grammar of graphics, allowing analysts to describe what they want to see rather than how to draw it. This declarative approach maps data columns to visual channels (position, color, size, shape) and lets the library handle rendering details.

Altair excels when exploring data interactively in notebooks—its concise syntax makes it fast to iterate through different chart configurations. It supports linked selections across multiple charts, enabling exploratory dashboards where clicking a point in one chart filters data in another.

For production WFM dashboards, Plotly or Matplotlib generally provide more control; Altair shines in the exploratory analysis phase where speed of iteration matters more than pixel-perfect output.

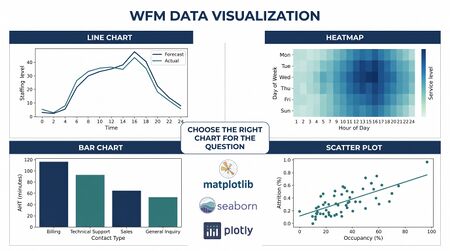

Choosing the Right Chart Type

Selecting the wrong chart type obscures the insight the data contains. Stephen Few's framework of matching chart type to analytical question provides a practical guide.

Time Series → Line Charts

When the primary question is "how does this metric change over time?" a line chart is almost always correct. Lines imply continuity and temporal sequence—both properties of interval data.

WFM examples:

• Interval volume throughout the day
• Weekly service level trends over a quarter
• Monthly attrition rate over two years
• Forecast accuracy (MAPE) trending over successive forecast cycles

Avoid bar charts for time series with many intervals. A bar chart with 96 fifteen-minute intervals creates visual clutter; a line chart conveys the same information cleanly.

Distribution → Histograms and Box Plots

When the question is "what does the spread of this metric look like?" distribution charts reveal shape, center, and outliers.

WFM examples:

• AHT distribution by call type (reveals skewness that averages hide)
• Agent adherence percentage distribution (identifies bimodal patterns—a group at 95%+ and a group below 80%)
• Speed of answer distribution (long tail matters more than the average)

Box plots are particularly useful for comparing distributions across categories—AHT by team, adherence by shift type, quality scores by tenure band.

Comparison → Bar Charts

When comparing discrete categories on a single metric, horizontal or vertical bar charts provide clear ranking and magnitude comparison.

WFM examples:

• Service level by queue (which queues are below target?)
• Forecast accuracy by day of week (is Monday consistently worse?)
• Overtime hours by team (where is the cost concentrated?)
• Shrinkage components breakdown (PTO, training, coaching, system downtime)

Stacked bars work when showing composition—total shrinkage broken into its components across teams or months.

Relationship → Scatter Plots

When the question is "how do two metrics relate to each other?" scatter plots reveal correlation, clusters, and outliers.

WFM examples:

• Occupancy vs service level (the classic inverse relationship)
• Tenure vs AHT (learning curve visualization)
• Schedule satisfaction score vs attrition probability
• Volume vs staffing cost (for budgeting analysis)

Adding a regression line or color-coding points by a third variable (team, site, channel) adds analytical depth without visual complexity.

Building WFM Dashboards

Static charts in notebooks and reports serve analysis well, but operational WFM teams need live, interactive dashboards that update with current data and allow drill-down exploration. Python offers several frameworks for building web-based dashboards without requiring front-end development expertise.

Streamlit

Streamlit is the fastest path from a Python script to a shareable dashboard. Its "write a script, get an app" model eliminates the HTML/CSS/JavaScript layer entirely. A WFM analyst who can write a Pandas script can have a functioning dashboard in under an hour.

Typical WFM Streamlit applications:

• Intraday performance dashboards with interval-level charts
• Forecast accuracy review tools with date pickers and queue selectors
• Capacity planning scenario modelers with slider inputs for volume, AHT, and shrinkage assumptions
• Schedule coverage analyzers with file upload for schedule exports

import streamlit as st
import pandas as pd
import plotly.express as px

st.title("Intraday Performance Dashboard")
date = st.date_input("Select Date", value=pd.Timestamp("2026-05-13"))
queue = st.selectbox("Queue", ["Sales", "Service", "Technical", "Billing"])

# In production, this reads from a database or API
df = load_interval_data(date, queue)

col1, col2, col3 = st.columns(3)
col1.metric("Current SL", f"{df['sl'].iloc[-1]:.0%}",
            delta=f"{df['sl'].iloc[-1] - 0.80:.0%}")
col2.metric("Contacts Today", f"{df['volume'].sum():,.0f}")
col3.metric("Avg AHT", f"{df['aht'].mean():.0f}s")

fig = px.line(df, x="interval", y=["forecast", "actual"],
              title=f"Volume — {queue} — {date}")
st.plotly_chart(fig, use_container_width=True)

Dash

Dash, built by the Plotly team, provides more control over layout and interactivity than Streamlit at the cost of more code. Dash uses a callback-based architecture where user interactions (dropdown changes, slider adjustments, button clicks) trigger Python functions that update charts and tables.

Dash is the stronger choice when:

• The dashboard requires complex multi-chart interactions (selecting an interval in one chart filters a table below)
• Custom styling and branding are required
• The application will be deployed to multiple users with authentication
• Performance optimization for large datasets is critical

Panel

Panel, part of the HoloViz ecosystem, integrates with any Python visualization library—Matplotlib, Plotly, Altair, Bokeh—and provides a flexible framework for building dashboards and applications. It is particularly strong for data science teams already using Jupyter notebooks, as Panel widgets work within notebooks and can be deployed as standalone applications without code changes.

Real-Time Visualization

Real-time WFM visualization has its own requirements that differ from analytical and reporting charts. Latency, readability at distance, and alert thresholds matter more than analytical depth.

Wallboards and real-time dashboards typically display:

• Current service level with color-coded status (green/yellow/red against target)
• Contacts in queue and longest wait time
• Available agents vs required agents
• Intraday forecast-to-actual tracking with projected end-of-day service level

These displays prioritize glanceability—a real-time analyst should be able to assess the state of 10 queues in under five seconds. Large fonts, high-contrast colors, and minimal chart decoration are essential.

Python-based real-time dashboards use frameworks like Streamlit (with auto-refresh) or Dash (with interval-based callbacks) to poll data sources and update visualizations. For production wallboard deployments, dedicated tools often outperform custom solutions, but Python dashboards serve well for supplementary views and analysis.

Visualization Best Practices

Creating charts is easy. Creating charts that communicate accurately and efficiently is a discipline. The following principles, drawn from Tufte and Few, apply directly to WFM visualization.

Maximize the Data-Ink Ratio

Every drop of ink on a chart should represent data. Remove gridlines that do not aid reading, reduce border weights, eliminate 3D effects, and avoid background fills that add no information. Tufte's data-ink ratio—the proportion of ink devoted to non-redundant data display—should be as high as possible.

In practice for WFM charts: remove default gray backgrounds, reduce gridline opacity, eliminate unnecessary legends (label lines directly), and avoid chart borders.

Annotate for Context

A chart showing a service level drop from 82% to 61% at 14:00 is useful. The same chart with an annotation reading "System outage 13:45–14:30" tells a complete story. Annotations transform charts from displays of numbers into explanations of events.

Key WFM annotations include:

• System outages and platform issues
• Marketing campaigns or promotions
• Hiring cohort start dates
• Holiday periods and special events
• Process changes (new IVR, routing changes, AHT target adjustments)

Use Color Purposefully

Color should encode meaning, not decoration. Establish a consistent color vocabulary:

• Red for below target / negative variance
• Green for at or above target / positive variance
• Blue for forecast or planned values
• Orange for actual or realized values
• Gray for reference data, benchmarks, or prior periods

Avoid using more than five to seven colors in a single chart. Use color saturation or lightness variation rather than hue variation when showing magnitude within a single category. Always verify that charts remain interpretable for colorblind viewers—approximately 8% of men have some form of color vision deficiency.

Avoid Chartjunk

Tufte coined "chartjunk" to describe visual elements that do not convey data: decorative fills, gratuitous icons, unnecessary 3D perspective, and excessive labeling. In WFM dashboards, common chartjunk includes:

• 3D pie charts showing queue distribution (use a horizontal bar chart instead)
• Gradient fills on area charts that make value estimation difficult
• Dual-category donut charts that are harder to read than simple tables
• Animated transitions that slow interpretation

Every element in a chart should survive the question: "Does removing this make the chart harder to understand?" If the answer is no, remove it.

Tell a Story with Data

A collection of charts is not a story. Effective data communication sequences charts to build understanding: start with the headline metric (service level missed target this week), then explain why (volume exceeded forecast on Tuesday and Wednesday), then show the mechanism (a marketing campaign drove 18% more contacts than planned), then present the implication (if similar campaigns recur, current staffing model needs a campaign uplift factor).

This narrative structure applies to weekly business reviews, monthly capacity readouts, and executive presentations. Charts are evidence; the story is the interpretation.

Stakeholder-Specific Views

Different audiences need different visualizations from the same data. Designing for the audience is as important as designing the chart itself. The WFM KPI Hierarchy and Reporting Cadence framework provides the structural foundation for aligning visualizations to audience needs.

Executive View

Executives need trends, not intervals. Their questions are directional: Is service improving or declining? Are we over or under budget on staffing? How does this quarter compare to last quarter?

Effective executive visualizations:

• Weekly or monthly trend lines for headline KPIs (service level, customer satisfaction, cost per contact)
• Variance-to-target summary charts (bullet charts or simple bar charts with target lines)
• Year-over-year comparison overlays
• Traffic light summaries (red/yellow/green) for portfolio-level queue health

Keep interval-level detail out of executive views. If an executive asks "why did service level drop in March?" the answer is a drill-down view, not a default display.

Planner View

Planners need interval-level granularity and the ability to compare scenarios. Their questions are operational: Where are the staffing gaps next week? Which shift pattern changes would improve coverage? How accurate was last month's forecast by interval?

Effective planner visualizations:

• Interval staffing curves with requirement, scheduled, and actual overlays
• Forecast-vs-actual charts with error shading and bias indicators
• Schedule coverage stacked charts by shift type
• Scenario comparison panels (current plan vs proposed plan side by side)

Real-Time Analyst View

Real-time analysts need current state with minimal latency. Their questions are immediate: Are we meeting service level right now? Do we need to activate contingency actions? Which queues need attention?

Effective real-time visualizations:

• Live KPI gauges with color-coded thresholds
• Intraday tracking charts showing forecast-to-actual trajectory
• Queue health matrices (multiple queues, multiple metrics, color-coded)
• Alert-driven displays that surface exceptions rather than showing all-normal states

Excel Charts vs Python Charts

Most WFM teams begin their visualization journey in Excel, and many remain there. Understanding when Excel charts are sufficient and when Python-based visualization becomes necessary helps teams invest effort appropriately.

When Excel Is Appropriate

• Ad hoc analysis for a single day or week
• Charts embedded in business review decks that stakeholders edit
• Simple trend charts with fewer than a few hundred data points
• Teams without Python skills or infrastructure
• Rapid prototyping of a chart concept before automating

Excel's conditional formatting, pivot charts, and sparklines handle many routine WFM visualization needs competently. The reporting automation path often starts with Excel and graduates to Python as needs grow.

When Python Becomes Necessary

• Recurring charts that should be automated rather than manually rebuilt
• Large datasets (thousands of intervals, months of history) that slow Excel
• Interactive dashboards requiring hover, zoom, and filter capabilities
• Statistical visualizations (distributions, regressions, heatmaps) that Excel handles poorly
• Integration with data pipelines that pull from APIs, databases, or cloud storage
• Reproducibility requirements—a Python script produces the same chart every time given the same data

Migration Path

Teams transitioning from Excel to Python visualization typically follow a progression:

1. Reproduce existing Excel charts in Matplotlib — proves the toolchain works and builds confidence
2. Add charts Excel cannot easily produce — heatmaps, violin plots, multi-panel layouts
3. Automate recurring reports — scheduled scripts that generate and distribute charts via automation frameworks
4. Build interactive dashboards — Streamlit or Dash applications that replace static spreadsheet views
5. Integrate with data pipelines — charts generated from live data sources rather than exported files

This progression matches the broader Python adoption path for WFM teams.

Integration with the WFM Analytical Stack

Data visualization does not exist in isolation. It connects to every layer of the WFM analytical stack:

• Data preparation — Pandas cleans, transforms, and aggregates data before visualization. The quality of a chart depends on the quality of its underlying data pipeline.
• Analysis — Jupyter notebooks combine code, charts, and narrative text in a single document, making visualization an integral part of the analytical workflow rather than a separate step.
• Reporting — The Reporting and Analytics Framework defines what metrics are tracked and how they flow to stakeholders. Visualization implements the display layer of that framework.
• Automation — Reporting Automation and Self Service Analytics systems schedule chart generation, distribute dashboards, and enable stakeholders to explore data without analyst intervention.
• KPI hierarchy — The WFM KPI Hierarchy and Reporting Cadence determines which metrics are visualized at which cadence for which audience—the structural backbone of any dashboard strategy.

See Also

• Python for Workforce Management
• Jupyter Notebooks for WFM Analysis
• Pandas and Data Manipulation for WFM
• Reporting and Analytics Framework
• Reporting Automation and Self Service Analytics
• Forecast Accuracy Metrics
• Service Level
• Occupancy
• Average Handle Time
• Real Time Staffing Visualization and Wallboards
• WFM KPI Hierarchy and Reporting Cadence
