Monte Carlo and discrete-event simulation approaches for WFM.

Simulation Tools for WFM encompass the software platforms, programming libraries, and methodological frameworks that workforce management professionals use to model contact center operations beyond the assumptions of classical Erlang C and Erlang-A formulas. Where analytical queueing models assume stationary arrival rates, exponential service times, and single-skill agent pools, simulation tools allow planners to represent multi-skill routing, time-varying demand, agent absenteeism, and other real-world complexities that violate those assumptions. Simulation has become a critical capability for organizations pursuing Probabilistic Planning in WFM, Capacity Planning Methods that quantify budget risk, and Scenario Planning and Contingency Staffing across volatile operating conditions.

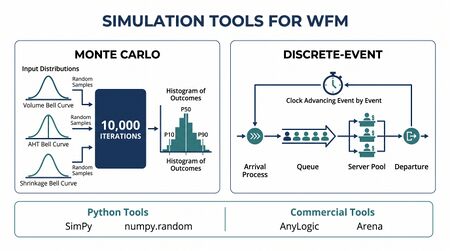

The two dominant simulation paradigms in workforce management are Monte Carlo simulation — which uses repeated random sampling to build probability distributions of outcomes — and discrete-event simulation (DES) — which models individual contacts flowing through a system over time. Both approaches can be implemented in open-source tools like Python or in commercial platforms purpose-built for operations research.

Why Simulate

Analytical models like Erlang C are powerful precisely because they are simple: given an arrival rate, a handle time, and a number of agents, they produce an exact service level. That simplicity becomes a liability when the real system violates the model's assumptions.[1]

Common situations where simulation outperforms analytical formulas:

  • Multi-skill environments — When agents handle multiple contact types with skill-based routing, the mathematical interactions between queues become intractable for closed-form solutions. A center with 8 skill groups and priority-based routing has no Erlang equivalent.
  • Non-stationary arrivals — Erlang models assume a constant arrival rate within each interval. When arrival rates shift within a half-hour (e.g., a marketing email drops at 10:15), simulation captures the transient dynamics that interval-based planning misses.
  • Non-exponential distributions — Real handle times often follow lognormal or gamma distributions rather than the exponential distribution assumed by Erlang. Simulation draws directly from fitted distributions, producing more accurate service level estimates.[2]
  • Complex routing logic — Priority queues, overflow routing, callback offers, and chatbot-to-human escalation paths create branching logic that analytical models cannot represent.
  • Abandon and retry behavior — While Erlang-A adds abandonment, it still assumes exponential patience. Simulation can model empirical patience distributions and the retry behavior that inflates apparent demand.
  • Capacity planning under uncertainty — When the question shifts from "what service level will we hit?" to "what is the probability we exceed budget?", simulation's ability to produce full outcome distributions becomes essential.

The gap between deterministic and probabilistic approaches is precisely where simulation tools create value.

Monte Carlo Simulation for WFM

Monte Carlo simulation generates thousands or millions of scenarios by repeatedly sampling from probability distributions that represent uncertain inputs. In workforce management, typical uncertain inputs include:

  • Contact volume (often modeled as Poisson-distributed or with overdispersion)
  • Average handle time (lognormal or gamma)
  • Agent shrinkage and absenteeism rates
  • Transfer rates between queues

For each trial, the simulation draws a random value for each input, computes the staffing outcome using a deterministic formula (often Erlang C or a multi-server queueing approximation), and records the result. After thousands of trials, the collection of results forms a probability distribution of outcomes.[3]

Practical Applications

Staffing risk analysis — Rather than planning to a single forecast, Monte Carlo simulation answers: "Given our forecast uncertainty, what is the probability that we need more than 85 agents in Week 12?" This reframes staffing from a point estimate to a confidence interval.

Budget confidence intervals — Finance teams can receive projections like "90% confidence the annual staffing cost falls between $4.2M and $4.8M" rather than a single number that implies false precision. This connects directly to Probabilistic Planning in WFM.

Sensitivity analysis — By examining which input distributions drive the most variance in outputs, planners identify where improved forecasting will yield the greatest staffing accuracy.

Monte Carlo is computationally simple. A basic implementation requires only a random number generator and the deterministic model being wrapped. Python's numpy.random module provides all necessary distribution samplers, making this the most accessible entry point for WFM teams exploring simulation.

Discrete-Event Simulation

Where Monte Carlo wraps a formula in randomness, discrete-event simulation models the system itself. Individual contacts are generated, enter queues, get routed to agents, consume service time, and depart. The simulation clock advances from event to event — an arrival, a service completion, an abandonment — rather than ticking through fixed time steps.[2]

A DES model of a contact center typically includes:

  1. Arrival process — Contacts generated according to a statistical process (e.g., non-homogeneous Poisson with a time-varying rate function)
  2. Queue discipline — FIFO, priority-based, or skill-based routing rules that determine which waiting contact gets served next
  3. Service process — Each contact consumes agent time drawn from a fitted distribution
  4. Agent pool — Agents with defined skills, schedules, and states (available, busy, on break, in after-call work)
  5. Departure and measurement — Contacts exit the system; the simulation records wait time, handle time, abandonment status, and transfers

The power of DES lies in its ability to capture emergent behavior — system-level patterns that arise from individual-level interactions. Queue buildup during an arrival spike, the cascade effect when a skilled agent goes on break, the feedback loop between long waits and increased abandonment — these dynamics emerge naturally from a well-specified DES model without requiring the modeler to anticipate them analytically.

DES models align with the broader taxonomy of simulation approaches and are the standard tool for detailed operational modeling in contact centers.

Python Simulation Libraries

Python has become the dominant language for WFM simulation due to its accessible syntax, rich library ecosystem, and strong community support.

SimPy

SimPy is a process-based discrete-event simulation framework built on Python generators. It models active components (contacts, agents) as processes that interact with shared resources (agent pools, phone lines) through request/release semantics.[4]

Key characteristics:

  • Process-based modeling — Each contact's lifecycle is written as a Python generator function, making the code read like a narrative description of the contact's journey
  • Resource management — Built-in Resource, PriorityResource, and PreemptiveResource classes map directly to agent pool concepts
  • No GUI — SimPy is a library, not a platform. Visualization and analysis happen through matplotlib, pandas, and other Python tools
  • Active development — Maintained and documented, with SimPy 4.x as the current stable release

SimPy excels for WFM teams that already use Python for forecasting or data analysis and want to extend into simulation without adopting a separate platform.

NumPy and SciPy

For Monte Carlo simulation, Python's scientific computing stack provides everything needed:

  • numpy.random — Fast random variate generation from dozens of distributions (Poisson, lognormal, gamma, uniform, etc.)
  • scipy.stats — Distribution fitting to historical data, enabling modelers to determine which distribution best represents their handle times or arrival patterns
  • pandas — Data manipulation for preparing inputs and analyzing simulation outputs

A Monte Carlo staffing simulation can be built in under 50 lines of Python using only NumPy, making it an ideal starting point for analysts new to simulation.

Mesa

For agent-based modeling — where individual agents (in the modeling sense) make autonomous decisions — the Mesa library provides a framework. While less common in traditional WFM, agent-based approaches become relevant when modeling agent behavior (schedule adherence decisions, skill development over time) or customer behavior (channel switching, callback acceptance).[5]

Commercial Simulation Platforms

When the modeling complexity exceeds what a Python script can reasonably maintain, or when non-technical stakeholders need to interact with models, commercial simulation platforms provide integrated environments for model building, animation, experimentation, and reporting.

AnyLogic

AnyLogic supports discrete-event, agent-based, and system dynamics modeling in a single environment. Its contact center library includes pre-built components for arrivals, skill-based routing, IVR navigation, and agent scheduling. The platform's combination of visual model building and Java-based extensibility makes it suitable for large-scale contact center simulations where multiple modeling paradigms intersect.[6]

Arena (Rockwell Automation)

Arena is one of the most established DES platforms in operations research. Its flowchart-based model building interface, built-in statistical analysis (via the Arena Input Analyzer and Output Analyzer), and integration with OptQuest for optimization make it a standard in academic and industrial settings. Arena models can represent detailed contact center operations including IVR trees, routing tables, and workforce schedules.

SIMUL8

SIMUL8 targets business users with a drag-and-drop interface and rapid model development. It includes features specifically designed for service operations: shift patterns, resource scheduling, and built-in KPI dashboards. SIMUL8's lower learning curve compared to Arena or AnyLogic makes it accessible to WFM teams without operations research backgrounds.

Choosing Between Python and Commercial Tools

Factor Python (SimPy) Commercial Platform
Cost Free $5,000–$50,000+ per license
Learning curve Requires programming skill Visual interface, lower barrier
Flexibility Unlimited customization Constrained to platform capabilities
Collaboration Code review, version control Shared model files, visual review
Animation Requires custom development Built-in 2D/3D visualization
Statistical rigor Full SciPy/statsmodels access Built-in analyzers, often limited
Scalability Cloud-deployable, parallelizable Desktop-bound in most cases

For most WFM teams, starting with Python Monte Carlo simulation and graduating to SimPy DES provides the best learning-to-value ratio. Commercial platforms become justified when model complexity demands visual debugging, when non-technical stakeholders must interact with live models, or when regulatory environments require validated software.

Building a Simple Contact Center Simulation

A conceptual walkthrough of building a basic DES contact center model illustrates the simulation development process. This represents the logic that tools like SimPy implement.

Step 1: Define the Arrival Process

Arrivals follow a non-homogeneous Poisson process with rates derived from historical interval-level data. For a half-hour interval with an expected 120 contacts, inter-arrival times are drawn from an exponential distribution with mean 15 seconds (1800 seconds / 120 contacts).

Step 2: Define Agent Resources

Create an agent pool as a shared resource with capacity equal to the number of scheduled agents for each interval. Agents have defined skills and follow a schedule that includes breaks and lunches.

Step 3: Model the Contact Journey

Each contact follows a process:

  1. Arrive and enter the queue
  2. Wait for an available agent with the required skill
  3. If wait exceeds patience threshold (drawn from a patience distribution), abandon
  4. If served, consume service time drawn from a lognormal distribution fitted to historical handle time data
  5. Release the agent and depart

Step 4: Collect Metrics

Track for each contact: arrival time, wait time, whether abandoned, service time, which agent served it. Aggregate across all contacts to compute service level, average speed of answer, abandonment rate, and occupancy.

Step 5: Run Multiple Replications

A single simulation run represents one possible day. Run 500–1,000 replications with different random seeds to build a distribution of outcomes. The mean service level across replications estimates expected performance; the 10th percentile estimates worst-likely-case performance.

This replication logic is what bridges DES into Probabilistic Planning in WFM — each replication is one draw from the universe of possible outcomes.

Simulation for Capacity Planning

The highest-value application of simulation in WFM is capacity planning under uncertainty. Traditional capacity planning uses a single forecast and deterministic staffing calculations to produce a single headcount plan. Simulation-based capacity planning produces a probability distribution of required headcount across planning horizons of months to years.

The process:

  1. Parameterize uncertainty — Fit distributions to historical forecast error, handle time variability, shrinkage variance, and attrition rates
  2. Generate scenarios — For each Monte Carlo trial, draw from all input distributions simultaneously
  3. Compute staffing — Calculate required FTEs for each scenario using Erlang or simulation-based staffing
  4. Aggregate across time — Roll up weekly staffing into monthly and quarterly FTE requirements
  5. Report confidence intervals — Present capacity plans as ranges: "We need 340–380 FTEs in Q3 with 80% confidence"

This approach transforms the conversation between WFM and Finance from "we need 360 FTEs" (which is wrong by definition) to "there is a 15% chance we need more than 370 FTEs" (which quantifies the risk). The methodology connects directly to Scenario Planning and Contingency Staffing by providing the probabilistic foundation for trigger-based contingency plans.

Running hundreds of simulation scenarios is computationally trivial on modern hardware. A Monte Carlo capacity plan with 10,000 trials across 52 weeks completes in seconds in Python. DES-based capacity planning takes longer per trial but remains feasible with parallel execution.

Digital Twins

A workforce digital twin extends simulation from a planning exercise to a continuously running operational model. Where traditional simulation answers "what if?" questions about the future, a digital twin maintains a real-time mirror of the current operation and projects forward continuously.

Components of a workforce digital twin:

  • Real-time data feeds — Live ACD data, schedule adherence, queue depths, and agent states flow into the model
  • Calibrated simulation engine — A DES model calibrated to historical data and continuously re-calibrated as new data arrives
  • Forward projection — The model runs forward from the current state to project service levels, staffing needs, and queue dynamics for the next 30, 60, and 120 minutes
  • Scenario evaluation — Planners can test interventions (pulling agents from back-office, activating overtime, opening a callback queue) against the live model before implementing them

Digital twins represent the frontier of simulation in WFM, enabled by cloud computing, real-time data infrastructure, and the maturation of simulation frameworks. They embody the continuous planning paradigm where the plan is never static but always being refined against evolving reality.

Implementation remains complex, requiring real-time data pipelines, model governance, and organizational processes to act on twin-generated insights. Most organizations pursuing digital twins build on a foundation of well-validated batch simulation models.

Validating Simulation Models

A simulation model is only as useful as its fidelity to reality. Validation — confirming that the model produces outputs consistent with observed system behavior — is a non-negotiable step in simulation development.[1]

Input Validation

  • Distribution fitting — Use statistical tests (Kolmogorov-Smirnov, Anderson-Darling, chi-square) to verify that assumed input distributions match historical data
  • Parameter estimation — Validate that arrival rates, handle times, and patience parameters reflect current operational reality, not stale historical averages
  • Correlation structure — Check whether inputs are independent as assumed, or whether correlations (e.g., high volume days also having longer handle times) need to be modeled

Output Validation

  • Historical comparison — Run the simulation with historical inputs and compare output distributions (service level, ASA, abandon rate) against actual historical values
  • Face validation — Present model behavior to experienced operations managers and validate that the dynamics "look right"
  • Sensitivity testing — Verify that the model responds to parameter changes in the expected direction and magnitude

Calibration

When validation reveals discrepancies, calibration adjusts model parameters to align outputs with observations. Common calibration targets include:

  • Adjusting arrival rate multipliers to match observed volume patterns
  • Tuning patience distributions to match observed abandonment rates at different wait thresholds
  • Modifying after-call work distributions to match observed agent utilization

Banks et al. recommend a structured verification and validation process throughout model development, not as an afterthought.[2] A model that has not been validated against historical actuals should not be used for planning decisions.

When Simulation Adds Value vs. Overkill

Simulation requires investment in skills, data preparation, and model maintenance. A decision framework helps determine when that investment pays off:

Simulation Adds Clear Value When

  • Multi-skill routing is complex — More than 3–4 skill groups with cross-training and priority-based routing. Erlang models produce inaccurate results in these environments.
  • Decisions involve significant financial risk — Capacity plans affecting millions in labor spend warrant the precision that simulation provides.
  • Stakeholders need risk quantification — "What is the probability of missing SLA?" is a simulation question, not an Erlang question.
  • The system has feedback loops — Abandonment-retry cycles, callback queue interactions, or chatbot escalation paths create dynamics that analytical models cannot capture.
  • You need to evaluate operational changes — Testing a new routing strategy, a schedule bid process, or a channel migration before implementation.

Erlang Models Remain Sufficient When

  • Single-skill, single-queue environments — Classical queueing theory handles these well.
  • Interval-level staffing — For intraday staffing calculations with stable arrival rates within intervals, Erlang C/A provides accurate, instant results.
  • Quick estimates — When speed of analysis matters more than precision, analytical models deliver in milliseconds.
  • Data is limited — Simulation requires distributional data (not just averages). If only averages are available, Erlang models use the available data more honestly.

The Maturity Progression

Most organizations follow a natural progression:

  1. Erlang C — Single-skill staffing calculations
  2. Erlang A — Adding abandonment to improve accuracy
  3. Monte Carlo on Erlang — Wrapping Erlang in uncertainty to quantify risk
  4. Discrete-event simulation — Modeling system dynamics directly
  5. Digital twins — Continuous, real-time simulation

Each step up the ladder adds capability and complexity. Organizations should advance when the value of better answers exceeds the cost of building and maintaining more sophisticated models. The progression from deterministic to probabilistic thinking is the critical conceptual shift; the specific tool matters less than the mindset.
