Discrete Event Simulation for Workforce Capacity Planning

From WFM Labs

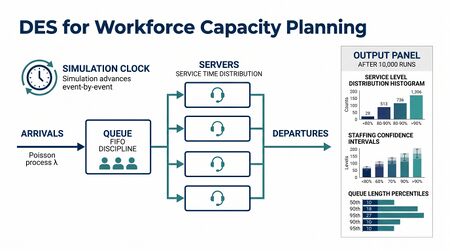

Discrete-event simulation: modeling individual contacts through queue and service.

Discrete-event simulation (DES) is a computational modeling methodology in which a system evolves through a sequence of events occurring at specific points in simulated time, with state unchanged between consecutive events. In workforce capacity planning, DES provides a mechanism for modeling contact center and knowledge-worker staffing systems with a fidelity unavailable to closed-form analytical methods. Unlike stationary queue formulas, DES captures time-varying demand, heterogeneous agent populations, complex routing logic, and stochastic service processes simultaneously within a single executable model.

DES has become particularly significant in contexts where human–AI blended staffing introduces heterogeneous service capability across pools, where containment variability reshapes effective workload, and where scenario-based planning must account for structural uncertainty rather than parametric uncertainty alone.

Analytical Models and Their Limits

Erlang-based formulas—particularly Erlang C and its extensions—have served as the foundational analytical engine of capacity planning since A. K. Erlang's original 1917 derivation for telephony. Erlang C assumes a stationary Poisson arrival process, exponentially distributed service times, infinite patience, a single homogeneous agent pool, and steady-state equilibrium. Under these conditions, it yields closed-form expressions for average wait time, service level, and required staffing.

These assumptions are violated routinely in operational contact centers. Arrival rates are non-stationary, often exhibiting intraday patterns that shift dramatically across half-hour intervals, day-of-week effects, and seasonal spikes. Service times follow distributions closer to lognormal than exponential, with heavy right tails driven by complex contacts and outlier handling. Callers abandon at rates that are time-dependent and influenced by expected wait, not merely queue length. Agent skill is heterogeneous: a newly tenured agent may handle only basic contacts while a senior specialist resolves escalations across multiple queues. In environments where AI containment intercepts a fraction of demand before it reaches agents, the residual workload has a different complexity distribution than the unfiltered stream.

Mehrotra and Fama demonstrated at the 2003 Winter Simulation Conference that staffing recommendations derived from Erlang C can diverge substantially from simulation-derived optima when non-stationarity and heterogeneous skills are present simultaneously.[1] Avramidis, Deslauriers, and L'Ecuyer showed that overdispersed arrival processes—where variance exceeds the mean, violating the Poisson assumption—produce systematic understaffing when Erlang-based models are used without correction.[2] These findings establish a technical boundary: Erlang remains appropriate for stable, single-skill, single-channel planning where the goal is directional staffing; DES is warranted when the planning question requires precision across complex operational conditions.

Anatomy of a Workforce Simulation Model

A DES workforce model consists of five core components: entities, resources, queues, routing logic, and the simulation clock.

Entities represent units of work—individual contacts, transactions, or tasks. Each entity carries attributes: channel (voice, chat, email, async), skill requirements, arrival timestamp, patience threshold (time-to-abandon), and, in blended environments, a flag indicating whether the contact is eligible for AI handling. In agentic AI scenarios, entities may also carry a handoff probability, modeling the likelihood that an AI session escalates to a human agent.

Resources represent agents or automated handlers. Agents carry attributes including skill set, availability schedule, wrap-up time distribution, and handling capacity (relevant for concurrent chat). Automated handlers are modeled with their own service-time distributions, failure rates, and containment probabilities. The resource pool in a three-pool architecture is represented as three distinct resource classes with different capability profiles and cost parameters.

Queues hold entities awaiting service. Multiple queues may coexist—skill-specific, priority-stratified, or channel-differentiated. Queue discipline (FIFO, priority, skill-based) is specified as a routing rule.

Routing logic governs entity-to-resource assignment. Skill-based routing rules, escalation paths, overflow between queues, and AI-first routing all manifest as conditional branching within the simulation's event processing.

The simulation clock advances discontinuously, jumping from one event to the next: an arrival, a service completion, an abandonment, a schedule change, an agent break. Between events, the system state is frozen. This event-driven architecture is what gives DES its efficiency advantage over time-step simulation for sparse-event systems.

Input Modeling

The quality of a DES model is bounded by the fidelity of its input distributions. Three input processes require particular care: arrivals, service times, and abandonment.

Arrival processes. Contact center arrivals are commonly modeled as non-homogeneous Poisson processes (NHPP), with rate parameters that vary by interval. However, empirical arrival data frequently exhibits overdispersion—variance exceeding the Poisson mean—attributable to correlated demand (multiple contacts from the same event trigger) or unobserved heterogeneity across days. Avramidis et al. recommend mixture models, specifically Poisson mixtures with gamma-distributed rates, to capture this overdispersion.[3] Failing to account for overdispersion understates service level variance and produces overconfident staffing recommendations.

Service-time distributions. Exponential service time is a mathematical convenience that rarely fits empirical data. Contact handle times typically exhibit a unimodal, right-skewed distribution better approximated by the lognormal. The lognormal's two parameters (μ, σ on the log scale) are estimable directly from historical AHT data. Where contacts are heterogeneous in complexity, mixture distributions—representing simple versus complex contact types—better replicate the observed bimodal shape. Law emphasizes the importance of goodness-of-fit testing (Kolmogorov–Smirnov, Anderson–Darling) before accepting any distributional assumption.[4]

Abandonment. Caller patience is not fixed. Empirical studies find that the hazard rate of abandonment is time-varying and depends on elapsed wait, perceived expected wait (influenced by queue messaging), and contact type. A common approximation is the exponential patience distribution, but log-logistic and Weibull distributions often fit observed abandonment curves more closely. The patience distribution has material impact on effective served volume at high occupancy; misspecifying it distorts the staffing curve near saturation.

Output Analysis: Warm-Up, Run Length, and Replication

A DES model initialized with an empty system is not in steady state. The warm-up period—the interval before the simulated system reaches representative operating conditions—must be excluded from output statistics. Welch's graphical method provides a practical approach: replicate the simulation multiple times, average the time series of a key output (queue length, wait time) across replications, and identify the point at which the moving average stabilizes. That point defines the end of the warm-up period.

Run length must be sufficient to produce output statistics with acceptable precision. For service level estimation, a coefficient of variation below 5% on the point estimate typically requires hundreds of simulated days per replication. Law recommends the replication-deletion method for steady-state analysis: run multiple independent replications, each preceded by the warm-up period, and compute confidence intervals from the cross-replication distribution of the statistic of interest.[5]

For non-stationary intraday analysis—the most common application in WFM—the terminating simulation approach is appropriate. Each simulated day is a replication, beginning with an empty system at shift start and terminating at shift end. Output statistics are computed across replications by interval, producing a time-indexed profile of service level, wait time, and utilization.

Simulating Human–AI Blended Pools

The emergence of human–AI blended staffing has added structural complexity to workforce simulation that Erlang formulations cannot accommodate. In a blended pool, contacts are routed first to an AI handler with some containment probability p(c). Contained contacts never reach the human queue. Uncontained contacts—either because the AI fails or because the contact type is ineligible for automation—escalate to human agents, often carrying an elevated complexity profile relative to the unfiltered stream.

A DES model can represent this architecture directly. The AI handler is modeled as a resource with its own service-time distribution and a containment attribute that determines whether the entity exits the system or re-enters the human queue. Containment variability—where p(c) varies by contact type, time of day, or model version—can be modeled stochastically, drawing p(c) from a beta distribution parameterized from observed containment data.

Critically, DES reveals a planning implication invisible to Erlang: when AI containment drops (due to model degradation, out-of-scope queries, or failure cascades), human queue load spikes non-linearly because both volume and complexity increase simultaneously. Scenario analysis on containment variability is therefore a core use case for blended-pool simulation. This connects directly to AI containment rate planning and agentic AI workforce planning frameworks.

Scenario Analysis

DES achieves its greatest planning value as a scenario engine. Structural changes—not parametric adjustments—are the domain where simulation is irreplaceable. Representative scenario classes include:

Channel restructuring. Adding an asynchronous messaging channel changes both arrival patterns and service-time distributions. DES can model the channel split, the concurrent-handling capacity of agents working multiple chat sessions, and the effect on overall service level before the channel is launched.

Site closure or consolidation. Redistributing demand from a closing site to remaining sites changes skill availability, overflow routing, and queue depth. DES quantifies the headcount required in receiving sites to maintain service level.

Automation rollout. A phased IVR improvement or agentic AI deployment can be modeled as a time-indexed increase in containment probability, with staffing implications surfaced by interval across the rollout timeline.

Attrition shocks. Where attrition exceeds backfill rates, the effective agent pool shrinks. DES can model graduated pool depletion and identify the service level threshold at which emergency hiring or overtime becomes necessary.

Commercial and Open-Source Tools

Several commercial platforms support contact center DES. Arena (Rockwell Automation) is a general-purpose DES environment with established use in service operations modeling; its graphical interface lowers barrier to entry but requires licensing. Simul8 offers contact center–specific constructs and is widely used in UK and European operational planning teams. AnyLogic supports hybrid simulation (DES, agent-based, and system dynamics within a single model), making it suitable for complex three-pool or multi-site architectures.

Open-source alternatives include SimPy (Python), a process-based DES library with an active user community, and Salabim, a more recent Python library with animation support. Both require more development effort than commercial tools but impose no licensing cost and integrate directly with data pipelines built in Python. For organizations with analytical capability in Python—common in workforce intelligence teams building toward people analytics convergence—SimPy offers a practical path to custom workforce simulation without vendor dependency.

Tool selection should be driven by model complexity, analyst capability, and the frequency of model use. A site-closure analysis run once annually is likely better served by a commercial tool with a graphical interface. A blended-pool simulation that must update weekly as containment rates shift favors an open-source, code-driven approach integrated into the analytics pipeline.

When Simulation Is and Is Not Appropriate

DES is not universally warranted. For stable, single-skill, single-channel environments with stationary demand and homogeneous agents, Erlang C with appropriate modifications (for non-stationarity, using the iterative SIPP or PSA method) is faster, cheaper, and transparent enough for operational use.

Simulation is warranted when: (1) multiple skill groups interact through overflow or blended routing; (2) service-time distributions are demonstrably non-exponential and the deviation is material to staffing outcomes; (3) the planning question involves structural change rather than parametric adjustment; (4) human–AI pool interactions create non-linearities that closed-form models cannot capture; or (5) decision stakes are high enough to justify the investment in model development and validation. Gans, Koole, and Mandelbaum's comprehensive review of queueing science for telephone call centers provides a definitive framework for matching analytical method to operational context.[6]

Maturity Model Considerations

Within the WFM Labs Maturity Model, discrete-event simulation capability is a marker of advanced analytical maturity. Organizations at lower maturity levels rely on Erlang-based tools embedded in commercial WFM platforms; the analytical assumptions are invisible and outputs are accepted as authoritative. Progression to DES capability requires not only technical tooling but analytical competence in stochastic modeling and statistical output analysis—skills uncommon in frontline WFM roles.

Simulation is most productively embedded within a WFM Center of Excellence where dedicated analytical resources can maintain model validity over time. A simulation model not maintained against current operational parameters degrades rapidly; arrival distributions shift, service-time profiles change with product mix, and containment rates evolve with AI model versions. The organizational capability required is not model-building alone but continuous model stewardship.

Maturity assessment should evaluate: input distribution validation frequency, scenario library breadth, integration between simulation outputs and workforce cost models, and the degree to which simulation findings influence staffing decisions versus serving as post-hoc justification.

Related Concepts

References

  1. ↑ Mehrotra, V., & Fama, J. (2003). Call center simulation modeling: Methods, challenges, and opportunities. Proceedings of the 2003 Winter Simulation Conference. IEEE.
  2. ↑ Avramidis, A. N., Deslauriers, A., & L'Ecuyer, P. (2004). Modeling daily arrivals to a telephone call center. Management Science, 50(7), 896–908.
  3. ↑ Avramidis, A. N., Deslauriers, A., & L'Ecuyer, P. (2004). Modeling daily arrivals to a telephone call center. Management Science, 50(7), 896–908.
  4. ↑ Law, A. M. (2015). Simulation Modeling and Analysis (5th ed.). McGraw-Hill.
  5. ↑ Law, A. M. (2015). Simulation Modeling and Analysis (5th ed.). McGraw-Hill.
  6. ↑ Gans, N., Koole, G., & Mandelbaum, A. (2003). Telephone call centers: Tutorial, review, and research prospects. Manufacturing & Service Operations Management, 5(2), 79–141.
