Robotic Process Automation

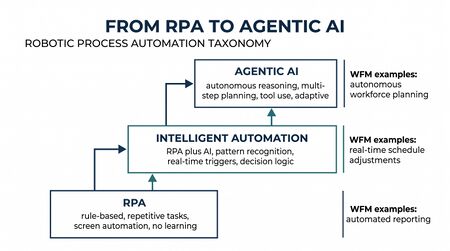

Evolution from RPA to intelligent automation to agentic AI.

Robotic process automation (RPA) is a technology that uses software robots ("bots") to automate repetitive, rule-based tasks by mimicking human interactions with digital systems — clicking, typing, copying, and navigating applications exactly as a human would. In contact center and back-office operations, RPA automates high-volume, low-complexity processes that previously required human agents. The global RPA market reached approximately $2.9 billion in 2022 and is projected to exceed $13 billion by 2030, reflecting annual growth rates above 30%.

From a workforce management perspective, RPA represents the first tier of automation — below conversational AI and agentic AI in capability but often the first AI/automation technology organizations deploy. RPA bots process work from queues, effectively becoming part of the workforce that WFM must plan for and around.

How RPA Works

RPA software operates at the user-interface layer, interacting with applications through the same graphical interface a human employee would use. This distinguishes RPA from traditional integration middleware, which requires API-level access and developer involvement.

Core Technical Mechanisms

RPA bots execute tasks through several technical approaches, often combined within a single automation:

• Screen scraping and UI interaction: Bots identify on-screen elements (buttons, text fields, menus) using selectors — unique identifiers for each UI component. They click, type, scroll, and navigate just as a human would. Modern RPA platforms use computer vision and element-property matching to locate controls even when screen layouts shift slightly.
• API integration: Where available, bots call application APIs directly rather than navigating the UI. This is faster and more reliable than screen interaction. Most enterprise RPA platforms support REST, SOAP, and database connectors alongside UI automation.
• Data manipulation: Bots read from and write to spreadsheets, databases, email inboxes, and file systems. They can parse structured and semi-structured data (CSV, XML, JSON), perform calculations, and format outputs for downstream systems.
• Decision logic: RPA bots execute branching rules — if/then/else conditions based on data values. These rules are deterministic: the same input always produces the same output. Bots do not learn or adapt; they follow predefined logic exactly.
• Exception handling: When a bot encounters a situation outside its rules (unexpected data, missing fields, system errors), it logs the exception and routes the item to a human queue for resolution.

Attended vs. Unattended Bots

The two primary deployment models define how bots interact with the human workforce:

Attended RPA runs on an employee's workstation, triggered by the user during an active work session. The bot assists the human rather than replacing them — auto-filling forms, retrieving data from multiple systems, or performing calculations while the agent remains on a call. Attended bots reduce AHT by eliminating manual desktop steps within each interaction.

Unattended RPA runs autonomously on dedicated servers or virtual machines, processing work from queues without human involvement. These bots operate 24/7, pulling items from a work queue, executing the defined process, and recording outcomes. Unattended bots are the primary model for back-office automation — claims processing, data migration, report generation, and inter-system reconciliation.

Hybrid models combine both: an attended bot assists an agent during a customer interaction, then hands off post-call tasks (case documentation, follow-up scheduling) to an unattended bot for asynchronous completion.

Orchestration and Control

Enterprise RPA deployments use an orchestrator — a central management server that schedules bots, assigns work, monitors execution, manages credentials, and logs audit trails. The orchestrator enables capacity management: administrators can spin up additional bot instances during peak periods and scale down during off-hours, mirroring workforce scheduling principles.

Applications in Contact Centers and WFM

Agent Desktop Automation (Attended RPA)

Bots running alongside agents on their desktop:

• After-call work automation: Auto-populating CRM fields, generating interaction summaries, sending follow-up emails, and dispositioning contact records
• Data retrieval: Pulling customer information from multiple systems (CRM, billing, order management, knowledge base) into a unified desktop view
• Process guidance: Walking agents through complex multi-step procedures with automated compliance checks at each stage
• Compliance verification: Ensuring required disclosures are read, consent is captured, and documentation steps are completed before allowing the agent to proceed

Attended RPA reduces AHT by automating manual desktop work within each interaction. Studies show attended RPA can reduce after-call work time by 30–50%.

Back-Office Processing (Unattended RPA)

Bots operating independently on queued work:

• Claims processing: Reading submitted claims, validating data against business rules, calculating amounts, and routing to appropriate adjudicator when human judgment is required
• Data entry and migration: Transferring information between systems (CRM to billing, HR to payroll, legacy to modern platforms) during system transitions or ongoing operations
• Document processing: Extracting data from forms, PDFs, and emails — often paired with optical character recognition (OCR) for scanned documents
• Account updates: Processing customer-requested changes (address, plan, payment method) that arrive through email, web forms, or internal queues
• Reconciliation: Matching records across systems and flagging discrepancies for human review
• Regulatory reporting: Compiling data from multiple sources into required formats and filing on schedule

Unattended RPA bots consume work from queues exactly as human agents do, making them a capacity resource that WFM must account for in capacity planning.

WFM-Specific Automation

RPA has distinct applications within the WFM function itself:

• Automated reporting: Bots extract data from ACD, WFM, CRM, and quality platforms; compile daily/weekly/monthly performance reports; format them; and distribute to stakeholders — eliminating hours of manual report assembly
• Schedule publishing: Bots pull optimized schedules from the WFM platform and publish them into the ACD or telephony system, ensuring configuration matches the plan without manual re-entry
• ACD configuration: Automating skill-group updates, routing-table changes, and queue-threshold adjustments that WFM analysts currently perform manually across vendor portals
• Data synchronization: Keeping agent profiles, skill assignments, and organizational hierarchies aligned across WFM, ACD, quality management, and HR systems
• Forecast data preparation: Pulling historical volume data from multiple sources, normalizing formats, and loading into the WFM platform for forecasting
• Intraday management support: Monitoring real-time dashboards and triggering predefined responses (overtime offers, voluntary time-off messages, skill-reassignment requests) when thresholds are breached

RPA vs. Intelligent Automation vs. AI: A Taxonomy

Understanding where RPA sits in the broader automation landscape prevents misapplication and sets realistic expectations.

Three Tiers of Automation

Dimension	RPA	Intelligent Automation	Cognitive AI / Agentic AI
What it automates	Structured, rule-based tasks (click, type, navigate)	Structured tasks + semi-structured data (OCR, NLP extraction)	Unstructured interactions (understand, reason, respond, decide)
Decision-making	None (follows predefined rules)	Limited (classification, extraction with confidence scores)	Judgment-based (interprets intent, generates responses, adapts)
Handles ambiguity	No (escalates exceptions)	Partially (within trained categories)	Yes (within training boundaries and guardrails)
Learning	None — executes fixed logic	Supervised (improves with labeled training data)	Self-improving within operational boundaries
Customer-facing	Rarely	Occasionally (document intake, form pre-fill)	Yes (chatbots, voice AI, email AI, autonomous agents)
Back-office	Primary use case	Primary use case	Growing (case analysis, exception resolution, end-to-end processing)
WFM treatment	Capacity resource (predictable throughput)	Capacity resource with variable accuracy	Workforce member (variable performance, quality monitoring needed)
Typical ROI timeline	3–6 months	6–12 months	12–24 months

RPA handles the structured, deterministic layer. Intelligent Automation adds machine learning to handle semi-structured data (reading invoices, classifying emails, extracting entities from documents). Cognitive/Agentic AI adds reasoning, language understanding, and autonomous decision-making. Most mature automation programs deploy all three tiers, with RPA as the foundation.

In the three-pool framework, RPA sits below Pool AA (autonomous AI) — it handles structured tasks that don't require language understanding or judgment. The combination of RPA (structured automation) + AI (unstructured automation) addresses the full spectrum of automatable work. The AI Scaffolding Framework provides a maturity model for progressing from basic RPA through intelligent automation to fully agentic workflows.

Workforce Planning Implications

Capacity Planning with RPA Bots

RPA bots represent automation capacity that must be modeled alongside human capacity. Their characteristics differ fundamentally from human workers:

• Consistent throughput: Bots process items at fixed rates with zero variation in "handle time" — no fatigue, no learning curve, no motivation fluctuations
• 24/7 availability: No shrinkage, breaks, PTO, or scheduling constraints. Effective available hours per bot = 24 × 7 = 168 hours/week versus ~35–40 productive hours for a human FTE
• No occupancy ceiling: Bots sustain 100% occupancy indefinitely with no burnout risk
• Deterministic failure modes: Exceptions that bots cannot process route to human agents — this exception volume must be forecast separately
• Elastic scaling: Bot instances can be spun up or down based on queue depth, unlike human staff which requires weeks-to-months lead time

The fundamental capacity equation becomes:

$\text{Human FTE Needed}=\frac{\text{Total Volume}-\text{Bot-Processed Volume}+\text{Bot Exception Volume}}{\text{Human Throughput Rate}}$

WFM teams must track bot completion rate (percentage of items fully processed without human intervention) as a key planning parameter. A bot with a 90% completion rate on 10,000 monthly items produces 1,000 exceptions requiring human handling — and those exceptions are typically more complex and slower to resolve than the original average.

Impact on Human Workload

RPA changes the nature of remaining human work in ways that affect staffing models:

• Complexity shift: Routine work is automated; remaining work is higher-judgment, increasing average skill requirements
• Higher AHT: Exception handling and complex cases take longer than the automated routine work they replaced
• Different skills: Agents shift from data entry to decision-making and exception resolution — requiring different hiring profiles and training
• Occupancy recalibration: With routine work removed, human agent volume drops but remaining work may require lower target occupancy due to cognitive load
• New roles: Organizations create bot-management roles — RPA developers, process analysts, exception-management specialists — that WFM must incorporate

Blended Workforce Modeling

As RPA bots become a permanent capacity component, WFM must evolve its planning models:

• Bot-human capacity ratios: Determining optimal mix per process based on exception rates, cost differentials, and service levels
• Exception forecasting: Predicting what percentage of bot-processed work will escalate to humans, and when (exceptions may spike after system updates or policy changes)
• Bot maintenance windows: Accounting for downtime during bot updates, platform upgrades, and process-change deployments
• Scenario planning: Modeling the workforce impact of expanding or contracting bot coverage across process types

Vendor Landscape

The RPA vendor market consolidated significantly between 2019 and 2025, with four dominant platforms and several niche players:

Major Platforms

• UiPath: Largest pure-play RPA vendor. Known for strong orchestration, extensive activity library, and AI Center for combining RPA with machine learning models. Public company (NYSE: PATH) with particular strength in enterprise-scale deployments.
• Automation Anywhere: Cloud-native platform emphasizing "Automation 360" architecture. Strong document-processing capabilities (IQ Bot) and process-discovery tools. Competes directly with UiPath for enterprise market share.
• Microsoft Power Automate: Microsoft's RPA offering, integrated with the Microsoft 365 ecosystem. Lower entry barrier for organizations already on Microsoft stack. Desktop flows (attended RPA) and cloud flows (unattended) leverage existing Active Directory and Azure infrastructure. Dominant in mid-market due to bundled licensing.
• Blue Prism: Pioneer of the term "robotic process automation." Acquired by SS&C Technologies in 2022. Known for governance, security, and auditability features favored by regulated industries (banking, insurance, government).

Emerging and Niche Players

• SAP Build Process Automation: Integrated with SAP ecosystem for automating ERP-centric processes
• Pegasystems: Combines RPA with case management and low-code application development
• NICE: Particularly strong in contact center attended-automation through its CXone platform
• Kofax: Focused on document-centric automation with strong OCR capabilities

Selection criteria for WFM environments typically prioritize: integration with existing ACD/WFM platforms, scalability of unattended bots, quality of orchestration/scheduling features, and total cost of ownership including licensing model (per-bot vs. consumption-based).

Implementation Methodology

Successful RPA implementation follows a structured approach that mirrors process improvement disciplines. Deloitte's global RPA survey found that 63% of organizations met or exceeded ROI expectations when following structured implementation methodology, compared to 30% for ad-hoc deployments.

Process Selection

Not every process is a good RPA candidate. Ideal processes are:

• Rule-based: Clear if/then logic with no subjective judgment required
• High-volume: Sufficient transaction volume to justify automation investment (typically >500 transactions/month)
• Stable: Process steps and underlying systems don't change frequently
• Structured data: Inputs and outputs are standardized (forms, templates, structured databases)
• Low exception rate: <20% of cases require human intervention

A process assessment matrix scores candidates on these dimensions plus estimated savings, implementation complexity, and strategic alignment.

Development Lifecycle

1. Process documentation: Map the as-is process in detail, including all decision points, exceptions, and system interactions
2. Bot development: Build the automation using the RPA platform's visual designer, coding each step, selector, and decision rule
3. Testing: Validate against representative data sets including edge cases and exception scenarios
4. User acceptance testing: Business stakeholders verify bot output matches expected results
5. Controlled deployment: Run bot alongside human processing to compare results (parallel run)
6. Production deployment: Full cutover with monitoring and exception-handling procedures in place
7. Continuous monitoring: Track completion rates, exception rates, processing times, and failure modes

Common Pitfalls

• Automating broken processes: RPA executes a process as-is. Automating an inefficient process locks in the inefficiency. Process optimization should precede automation.
• Underestimating maintenance: UI changes in target applications break bots. Organizations report spending 20–30% of initial development effort on annual bot maintenance.
• Insufficient exception design: Poor exception handling creates "silent failures" where bots process items incorrectly rather than escalating
• Scaling without governance: Departmental "bot sprawl" creates security, compliance, and maintenance challenges

ROI and Economics

Cost Structure

RPA economics involve four cost categories:

• Platform licensing: Annual subscription for the RPA platform (orchestrator, studio, bot licenses). Ranges from ~$5,000/year for basic attended bots to $15,000–$40,000/year per unattended bot for enterprise platforms.
• Development: Building and testing each automation. Simple bots (single-system, linear process): 2–4 weeks. Complex bots (multi-system, branching logic, exception handling): 8–16 weeks.
• Infrastructure: Servers or cloud VMs for unattended bots, plus orchestrator hosting
• Maintenance: Ongoing bot updates when target applications change, process rules evolve, or exceptions require new handling

Typical Returns

The Institute for Robotic Process Automation and AI (IRPA AI) reports that RPA implementations typically achieve:

• Cost reduction: 25–50% cost savings on automated processes, with the variation driven by labor cost, process complexity, and exception rates
• Speed improvement: Bots process transactions 3–5x faster than human workers for structured tasks
• Accuracy: Near-100% accuracy on rule-based tasks (eliminating human data-entry errors)
• Availability: 24/7 processing eliminates backlog accumulation during off-hours
• Payback period: 6–12 months for well-selected processes

For detailed frameworks on evaluating automation investments, see Automation Economics and ROI Decision Frameworks.

Limitations and Challenges

RPA's deterministic, rule-based nature creates inherent boundaries:

• Brittleness: Bots break when target application UIs change. A vendor updating a button label, moving a field, or changing a screen layout can halt bot execution until the automation is updated.
• No judgment: Bots cannot handle ambiguous situations, novel scenarios, or tasks requiring contextual interpretation. Every decision path must be pre-programmed.
• Process rigidity: Automating a process with RPA embeds current process logic. Changing the process means rebuilding the bot.
• Integration overhead: Each target application requires its own set of selectors and interaction patterns. Multi-system bots are complex to build and maintain.
• Security surface: Bots require credentials to log into systems. Managing bot identities, access controls, and credential rotation adds governance complexity.
• Diminishing returns at scale: The highest-value, easiest-to-automate processes get automated first. Subsequent automations deliver incrementally lower ROI.

Evolution Toward AI-Augmented RPA

The boundary between RPA and AI is dissolving. Modern RPA platforms increasingly incorporate AI capabilities, creating a spectrum from pure rule-based automation to intelligent automation:

Current Convergence

• Document AI: RPA bots use machine learning models to read unstructured documents (invoices, contracts, correspondence), extract relevant data, and feed it into the rule-based automation workflow
• Process mining: AI analyzes system event logs to discover which processes exist, how they actually execute (vs. how they're documented), and which are best suited for RPA
• Conversational triggers: RPA bots are triggered by Conversational AI interactions — a chatbot captures customer intent and data, then hands off to an RPA bot for back-end processing
• Predictive exception handling: ML models predict which items are likely to cause bot exceptions, pre-routing them to human queues rather than wasting bot processing time

The Path to Agentic Automation

The next evolution replaces rigid RPA scripts with AI agents that can:

• Interpret process goals rather than following step-by-step scripts
• Adapt when application interfaces or data formats change
• Make judgment calls on ambiguous cases within defined guardrails
• Self-heal when encountering errors, trying alternative approaches before escalating

This trajectory moves from RPA (deterministic scripts) through Intelligent Automation (ML-augmented RPA) to agentic AI (autonomous goal-oriented agents). Each tier handles a broader range of work complexity, progressively reducing the volume of work requiring human processing. The AI Scaffolding Framework describes how organizations can build this progression deliberately rather than ad hoc.

Organizations that treat RPA as a destination rather than a stepping stone risk building large estates of brittle bots that become technical debt when more capable automation approaches mature.
