Exponential Smoothing

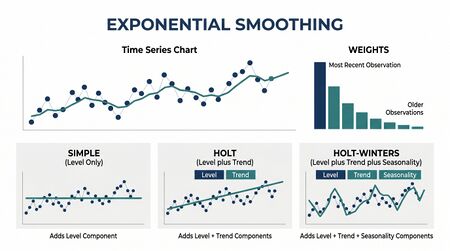

Exponential smoothing: recent observations weighted more heavily.

Exponential Smoothing, also called the ETS family (Error, Trend, Seasonality), is the most-used forecasting framework in workforce management beyond Erlang capacity calculations. ETS produces forecasts as weighted averages of past observations, with weights that decay exponentially as observations age. It accommodates trend and seasonality through extensions to the base smoothing equation, and is robust enough to be the production method for most WFM volume forecasts.

This page documents the family — simple, Holt's linear, Holt-Winters seasonal — with equations, parameter intuition, common WFM pitfalls, and the integration patterns most WFM software ships under the hood.

The smoothing principle

The core idea: future values are best predicted by recent values, weighted to emphasize the most recent. Exponential smoothing operationalizes this by computing a level term that updates with each new observation:

${\ell }_t=\alpha y_t+(1-\alpha ){\ell }_{t-1}$

The smoothing parameter $\alpha$ (between 0 and 1) controls how aggressively the level adapts to new data. High $\alpha$ follows the data closely; low $\alpha$ smooths heavily across history.

This recursive update makes ETS computationally cheap and well-suited to streaming WFM data where new intervals arrive continuously.

Simple Exponential Smoothing (SES)

For series with no trend and no seasonality, the forecast is just the smoothed level:

${\hat{y}}_{T+h|T}={\ell }_T$

with the level updating as:

${\ell }_t=\alpha y_t+(1-\alpha ){\ell }_{t-1}$

In WFM, SES applies to roughly steady-state series — long-run schedule adherence, occupancy averages — where there is no obvious trend or seasonal cycle. It is the wrong choice for volume data, which is almost always seasonal.

Parameter intuition: for noisy WFM series, $\alpha$ in the 0.1–0.3 range is typical. For series that respond to recent events (post-launch stabilization, post-incident recovery), higher $\alpha$ may be appropriate.

Holt's Linear Trend Method

For series with trend but no seasonality, add a trend component:

${\ell }_t=\alpha y_t+(1-\alpha )({\ell }_{t-1}+b_{t-1})$

$b_t=\beta ({\ell }_t-{\ell }_{t-1})+(1-\beta )b_{t-1}$

${\hat{y}}_{T+h|T}={\ell }_T+h\cdot b_T$

The trend term $b_t$ captures the slope; $\beta$ controls how aggressively the slope updates. The forecast is level plus trend extrapolated $h$ steps ahead.

Damped variant: for long-horizon forecasts, the unbounded trend extrapolation produces unrealistic results (volume keeps growing forever). Damping introduces a parameter $\varphi$ that diminishes the trend's contribution at long horizons:

${\hat{y}}_{T+h|T}={\ell }_T+(\varphi +{\varphi }^2+\cdots +{\varphi }^h)b_T$

Damped Holt is the default for many WFM software platforms because it is more honest about the limits of trend extrapolation.

WFM use case: multi-month volume forecasts for new product lines, attrition cohort modeling, capacity planning where the trend is expected to slow.

Holt-Winters Seasonal Method

For series with both trend and seasonality — almost all WFM volume data — add a seasonal component. There are two flavors: additive (when seasonal magnitude is constant) and multiplicative (when seasonal magnitude scales with the level).

Additive seasonal

${\ell }_t=\alpha (y_t-s_{t-m})+(1-\alpha )({\ell }_{t-1}+b_{t-1})$

$b_t=\beta ({\ell }_t-{\ell }_{t-1})+(1-\beta )b_{t-1}$

$s_t=\gamma (y_t-{\ell }_{t-1}-b_{t-1})+(1-\gamma )s_{t-m}$

${\hat{y}}_{T+h|T}={\ell }_T+h\cdot b_T+s_{T+h-m(k+1)}$

The seasonal term $s_t$ captures the period-to-period offset; $\gamma$ controls how the seasonal pattern updates over time. The forecast adds the seasonal offset for the appropriate season to the level-plus-trend baseline.

Multiplicative seasonal

When the seasonal swing scales with overall volume — typical in WFM data when peak hours scale with the day's total volume — use multiplicative:

${\hat{y}}_{T+h|T}=({\ell }_T+h\cdot b_T)\cdot s_{T+h-m(k+1)}$

with the level and seasonal updates adjusted to operate multiplicatively rather than additively.

Choosing additive vs multiplicative: if a plot of the series shows seasonal swings of constant size regardless of level, use additive. If the swings get bigger as the level rises, use multiplicative. Most contact center call volume is multiplicative.

WFM use case: weekly volume forecasts with weekly seasonality ($m=7$); monthly forecasts with annual seasonality ($m=12$); intraday forecasts with daily seasonality across half-hour intervals ($m=48$).

ETS state space form

The full ETS framework uses a state space representation that automates model selection. The notation ETS(E,T,S) encodes the error, trend, and seasonal components:

• E — Error: A (additive) or M (multiplicative)
• T — Trend: N (none), A (additive), Ad (additive damped), M (multiplicative)
• S — Seasonal: N (none), A (additive), M (multiplicative)

So ETS(A,N,N) is simple exponential smoothing with additive errors. ETS(M,Ad,M) is multiplicative-error damped-additive-trend multiplicative-seasonal — a common default for contact center volume.

Automated ETS routines (in R's `forecast` package, Python's `statsforecast`, and most modern WFM software) try multiple variants and select the best by AIC or cross-validated error. The practitioner's role is to verify the selection makes sense — not to override automated selection without diagnostic reason.

Common WFM pitfalls

• Single-period seasonality only. Standard Holt-Winters assumes one seasonal period. Half-hour interval WFM data has both intraday (48-period) and weekly (336-period) seasonality. Workarounds: use Multiple Seasonal Decomposition (MSTL) or treat the daily pattern as a profile and forecast at the daily aggregate level.
• Outlier sensitivity. Holiday spikes, system outages, marketing surges contaminate the level and seasonal terms. Pre-process to remove or flag known events before fitting.
• Forgetting damping. Long-horizon forecasts with un-damped Holt produce nonsense for capacity planning. Damp the trend or use simpler methods at long horizons.
• Multiplicative on near-zero data. Multiplicative ETS fails when the level approaches zero. Use additive on intermittent or low-volume series.

Parameter estimation

In practice, $\alpha$, $\beta$, $\gamma$, and $\varphi$ are not chosen by hand. They are estimated by minimizing the in-sample one-step-ahead forecast error (sum of squared errors, or maximum likelihood under a state space assumption). All modern ETS implementations do this automatically.

The practitioner's job is to:

1. Verify the estimated parameters are reasonable (e.g., $\alpha =0.99$ usually means the model is overfit; $\alpha =0.0$ usually means the data has no useful signal at this granularity)
2. Compare the chosen ETS variant against simpler benchmarks (see Naive and Seasonal Naive Forecasting)
3. Compare against ARIMA Models when residual diagnostics suggest unmodeled autocorrelation

Connection to WFM software

Most WFM platforms — Verint, NICE, Calabrio, Aspect, others — ship Holt-Winters under the hood as their default volume forecasting method. The platform's labels may not say "Holt-Winters" or "ETS"; common branded names include "trended seasonal exponential smoothing" or "weighted moving average with seasonality."

When evaluating platform forecasts:

• The math is well-known; the platform's customizations are usually about UI, parameter exposure, and ease of overlay (events, holidays, marketing campaigns)
• Benchmark against seasonal naive on the same data — see Naive and Seasonal Naive Forecasting
• If the platform's forecast underperforms seasonal naive, the configuration or pre-processing is wrong, not the method family

Maturity Model Position

In the WFM Labs Maturity Model™, ETS / Holt-Winters is the workhorse forecasting family of Level 2 — Foundational (Traditional WFM Excellence) — it is what most enterprise WFM platforms ship under the hood as the default volume forecasting method, and it remains the right method at higher levels for many series.

• Level 1 — Initial (Emerging Operations) — forecasting is largely judgmental; ETS is not in use.
• Level 2 — Foundational (Traditional WFM Excellence) — Holt-Winters is the production method, often run through vendor-branded names ("trended seasonal exponential smoothing"); diagnostic checks against seasonal naive are inconsistent.
• Level 3 — Progressive (Breaking the Monolith) — ETS is benchmarked routinely against naive and against ARIMA; the chosen variant (e.g., ETS(M,Ad,M)) is justified by diagnostics, not vendor default; parameter estimates are inspected for over- and under-fit.
• Level 4 — Advanced (The Ecosystem Emerges) — ETS participates in combinations alongside ARIMA and regression; STL+ETS hybrids handle evolving seasonality; outputs feed distributional capacity planning.
• Level 5 — Pioneering (Enterprise-Wide Intelligence) — automated state-space selection is continuously re-evaluated by the analytical platform; ETS specifications adapt without manual intervention.

ETS is a legacy practice that remains correct — its presence at L2 is not a deficiency, but L2 organizations typically use it as the only method, while L3+ organizations use it as one method among several.

References

• Hyndman, R. J., & Athanasopoulos, G. "Exponential smoothing." Forecasting: Principles and Practice (Python edition). otexts.com/fpppy.
• Hyndman, R. J., Koehler, A. B., Ord, J. K., & Snyder, R. D. Forecasting with Exponential Smoothing: The State Space Approach. Springer, 2008. The canonical state space treatment of the ETS family.
