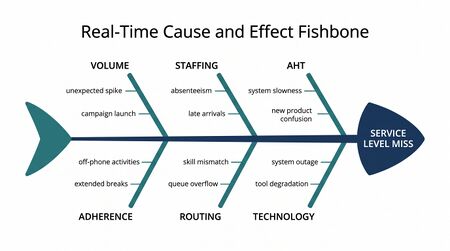

Cause-and-effect fishbone diagram for diagnosing service level misses.

The Real-Time Cause and Effect Fishbone is a diagnostic framework used in contact center real-time management to systematically analyze service-level failures as they occur or immediately following an interval-level miss. It applies the Ishikawa diagram methodology—developed by Kaoru Ishikawa for manufacturing quality control—to the specific causal structure of workforce management operations, adapting the technique for use in Resource Optimization Center (ROC) environments where root cause identification must occur within the intraday decision window.

The framework is a component of structured intraday management practice and is documented within WFM Processes for real-time operations. It provides ROC analysts and real-time leads with a shared taxonomy of service-level failure causes, enabling consistent diagnosis and cross-functional accountability assignment.

Background: The Ishikawa Diagram

The Ishikawa or "fishbone" diagram is a cause-and-effect visualization tool developed in industrial quality management. The "effect"—the quality problem or defect—is placed at the right end of the diagram (the fish's head), and potential causes branch from the main spine in categorized groupings (the fish's bones). The original manufacturing application uses six cause categories known as the 6 M's: Machine, Method, Material, Measurement, Man, and Mother Nature (environment).[1]

The contact center adaptation preserves the visual structure and the systematic enumeration of cause categories but replaces manufacturing-specific categories with the causal structure of real-time service delivery. The "effect" is a service-level miss—defined as an interval or half-hour period in which actual Service Level falls below the target threshold—and the cause categories reflect the four primary mechanisms through which service level can degrade.

The Four-Arm Structure

The Real-Time Cause and Effect Fishbone organizes service-level failure causes into four primary arms, each representing a distinct causal pathway.

Arm 1: Poor Line Adherence

Poor line adherence captures all instances in which scheduled agents are absent from their queue positions during periods when they are expected to be available. Specific causes within this arm include:

  • Late arrivals to shifts or breaks returning late
  • Extended break or lunch duration beyond schedule
  • Unplanned off-phone activities: unscheduled training, impromptu supervisor meetings, or administrative tasks displacing queue time
  • Agents logged into incorrect skills, routing groups, or channels such that their capacity does not reach the intended queue
  • Technical issues preventing log-in, including telephony failures, system crashes, or VPN connectivity problems

Adherence and Conformance tracking systems provide the measurement infrastructure to detect adherence failures in real time. Poor line adherence is the cause category most directly within the immediate control of real-time management through prompt intervention.

Arm 2: Actual Volume Does Not Match Forecast Volume

This arm captures demand-side variance—cases in which the volume of contacts arriving in the interval differs from what the forecast predicted. Specific causes include:

  • Systematic over-forecasting or under-forecasting from model error or stale assumptions
  • Unanticipated volume spikes from external events: product outages, billing errors, news events, or marketing campaigns not communicated to WFM
  • Missed seasonality patterns or calendar effects not incorporated into the forecast
  • Transfer volume from upstream or downstream queues not included in the interval forecast
  • Channel shift—volume arriving via voice that was forecast as self-service or digital, or vice versa

Volume variance is partially outside real-time management's control; the response options are cross-skill routing, emergency staffing actions, and escalation to management for volume-sourcing decisions. However, volume variance analysis during or after the interval informs forecast model improvement and is a critical feedback loop to the forecasting function.

Arm 3: Scheduled Line Does Not Match Arrivals

This arm captures scheduling deficiencies that were present before the interval began—cases in which the schedule was built incorrectly or with outdated assumptions. Specific causes include:

  • Insufficient agents scheduled for the interval due to under-staffing in the capacity plan
  • Break placement misaligned with forecast arrival peaks, creating scheduled coverage holes at high-demand intervals
  • Shrinkage allowance that understated actual off-phone demand, leaving less coverage than planned
  • Scheduling errors such as incorrect shift assignments, missing coverage for skill requirements, or mis-posted rosters

The distinction between Arm 3 and Arm 1 is important: Arm 1 reflects agents who were scheduled correctly but did not adhere to their positions. Arm 3 reflects scheduling that was incorrect before the interval began. The distinction matters for accountability: Arm 1 is a real-time management and supervisor accountability; Arm 3 is a scheduling function accountability. See Schedule Generation for the upstream processes that generate or prevent Arm 3 causes.

Arm 4: Average Handle Time Longer Than Forecast

This arm captures handle-time variance—cases in which contacts took longer to resolve than the AHT assumption embedded in the staffing model. Specific causes include:

  • Complex or escalated contact types arriving in higher-than-forecast concentrations
  • System slowness or outages increasing handle time through forced hold or re-keying
  • New-hire or low-tenured agent populations with higher-than-average AHT pulling up the interval average
  • Process changes not yet reflected in agent behavior, creating hold and research time
  • After-call work (ACW) spikes from documentation requirements or quality scoring activities

AHT variance affects staffing efficiency directly: every minute of excess AHT above forecast reduces the effective throughput of each staffed agent, creating a capacity shortfall equivalent to understaffing. A 10% AHT overage in a 100-agent operation is equivalent to losing 10 agents from the queue without any adherence failure.

Applying the Framework in ROC Operations

Real-Time Triage

When a service-level miss is detected during an interval, the Real-Time Cause and Effect Fishbone provides a rapid structured triage sequence. The ROC analyst checks each arm in sequence:

  1. Pull current adherence report: are agents in position? (Arm 1)
  2. Check volume against interval forecast: is demand running above plan? (Arm 2)
  3. Review scheduled coverage for the current and next interval: was the schedule adequate? (Arm 3)
  4. Check current AHT against forecast AHT: is handle time running above plan? (Arm 4)

The triage sequence takes two to four minutes with real-time reporting tools configured to display the relevant data in a single view. The output is a primary cause assignment that guides the intraday intervention decision. An Arm 1 diagnosis triggers agent contact to return to queue. An Arm 2 diagnosis triggers cross-skill activation or escalation. An Arm 3 diagnosis may have limited immediate remedy but informs schedule adjustment for subsequent intervals. An Arm 4 diagnosis may trigger a supervisory floor sweep to identify systemic handle-time inflation.

Pattern Recognition Across Incidents

The fishbone framework's full value in mature operations comes from systematic incident logging rather than single-event triage. When cause assignments are recorded for each service-level miss across intervals, days, and weeks, patterns emerge that expose systemic failures invisible in aggregate performance data.

A ROC that logs 60% of its service-level misses as Arm 3 (schedule does not match arrivals) over a four-week period has evidence of a structural scheduling quality problem that aggregate service-level metrics will not surface. This pattern data feeds directly into Capacity Planning Methods review and schedule quality improvement initiatives.

Cross-Functional Accountability Mapping

The four-arm structure maps cleanly to organizational accountabilities across WFM Roles:

  • Arm 1 — Real-time analysts and front-line supervisors
  • Arm 2 — Forecasting function and operations leadership (for volume sourcing decisions)
  • Arm 3 — Scheduling function
  • Arm 4 — Training, quality, and operations leadership (for systemic AHT issues); individual supervisors (for new-hire or performance-related AHT)

This mapping enables structured cross-functional debriefs following significant service-level events, where each function reviews its causal contribution and proposes remediation. It reduces the tendency to assign all service-level accountability to real-time management regardless of actual cause.

Example: Service Level Miss Diagnosis

A contact center targeting 80% of calls answered within 20 seconds experiences a 55% service level in the 2:00–2:15 PM interval on a Tuesday.

Triage findings: adherence is at 94% (Arm 1: not primary cause). Volume is 28% above interval forecast (Arm 2: significant contributor). Scheduled coverage was adequate given the original forecast (Arm 3: not primary cause). AHT is running 12% above forecast (Arm 4: contributing cause).

Diagnosis: The miss is primarily driven by a demand spike not captured in the forecast (Arm 2), compounded by handle-time inflation (Arm 4). Arm 1 and Arm 3 are not primary contributors. Immediate actions: activate cross-trained agents from secondary skill groups; supervisor floor sweep to identify AHT cause. Post-event actions: review forecast model for Tuesday afternoon arrival pattern; investigate AHT driver.

The fishbone as the method block of a standard

In a workforce function's standard (Anatomy of a ROC Standard), the fishbone is not a page of its own but the diagnostic instrument named at one step of the incident section: the fault-analysis step of Incident Management for Contact Centers (L1 step 6, L2 row 6.2). Process Decomposition (L0–L3) prints that row as its own worked example of the join key, with Job Aid: Real-Time Cause-and-Effect Diagram in the applicable-documentation column. The standard adds one requirement to the triage sequence above: the result is written on the incident record, per arm, as one of four states, indicated, contributing, ruled out or not assessed. An arm that was checked and cleared is recorded as ruled out, not left blank, because a blank cannot be told from an arm nobody looked at, and the ruled-out arms are what make incident logs comparable across nodes. The state is an association made under time pressure; cause is decided by the review, which is why the record carries both the triage assignment and, where a post-mortem is held, the review's assignment (Post-Mortem and RCA for Workforce Operations). Over a quarter the two columns measure the triage's own accuracy, arm by arm, which is the evidence a function needs before it lets an automated detector propose the arm.

The fault-arm field of the incident record, as the standard fixes it
Field Values Written by When
Arm 1 · poor line adherence indicated · contributing · ruled out · not assessed the real-time desk (or the agent team's issuer, as a proposal) at triage, step 6
Arm 2 · volume does not match forecast as above as above at triage
Arm 3 · scheduled line does not match arrivals as above as above at triage
Arm 4 · handle time longer than forecast as above as above at triage
Review assignment the arm the review confirmed, with the cause named the post-mortem moderator at review, where one is held

The pattern-recognition use described above is what the two-column record makes possible without a separate log: the incident record already carries the arm, the node, the book and the channel, so the share of misses on each arm by node is a query, not a study. L1 and L2 in this section mean the documentation levels of Process Decomposition (L0–L3).

Worked example: the arm field on an incident record

The chain's worked example applies the field to the incident of Wed 8 Apr 2026 that Real-Time Agents records. At 09:21 the issuer wrote the arms on incident IN-001 from the monitor's and detector's evidence: arm 1 indicated (staffing 11 percent under schedule from 09:00 [M]); arm 3 ruled out (the scheduled line matched the forecast arrivals); arm 4 ruled out (handle time on its post-migration level and in control); arm 2 not assessed at triage, no event covering the morning and volume not yet read against forecast. The discretionary post-mortem that afternoon (PM-001) confirmed arm 1 and named the cause as an unplanned training pull that had taken 14 agents off the floor and was in nobody's calendar; the review assignment therefore matched the triage assignment, and arm 2 was closed as ruled out once the volume read showed no demand excess [M]. The record's two columns agree on this incident, which is the ordinary case; the standard exists for the ones where they do not.

The artifact this page produces

The fault-arm field of the incident record, for the incident section of a function's standard (the §3.x pattern of Anatomy of a ROC Standard) and recorded against L0 card P-008 (T4): four arm states at triage and one review assignment. One filled example row:

Incident Arm 1 Arm 2 Arm 3 Arm 4 Review assignment Triage and review agree
IN-001 · Wed 8 Apr 2026 · voice indicated not assessed, later ruled out ruled out ruled out arm 1: an unplanned training pull (PM-001) yes

Produced in a working session with CP-OPS-003 ROC Standard Authoring (the pack link is added when the pack is live); the filled set is part of blueprint v0.1.

What would change this

The added claim is that recording a ruled-out arm explicitly, rather than leaving it blank, is what makes incident logs comparable across nodes and lets triage accuracy be measured. The observation that would overturn it is a function whose quarter of incident records, kept with blanks, produced the same arm-share-by-node picture and the same triage-accuracy estimate as a function recording the four states; the field would then be a discipline without a payoff, and the standard would drop it to the three states of indicated, contributing and blank.

How this connects

Maturity Model Considerations

At Level 1 of the WFM Labs Maturity Model, service-level failures are managed reactively without structured cause analysis. Root cause is assigned informally or not at all.

At Level 2, real-time management identifies causes informally but does not use a standardized taxonomy or log incidents systematically.

At Level 3, the Real-Time Cause and Effect Fishbone or an equivalent structured taxonomy is used consistently, and incident logs are maintained that enable pattern analysis.

At Level 4, incident logs feed automated trend analysis that surfaces systemic cause patterns and routes them to the appropriate function for remediation. Fishbone cause data informs forecast model improvement and scheduling quality review.

At Level 5, AI-assisted detection identifies probable cause assignments in real time based on pattern matching against historical incident data, with human confirmation for novel patterns.

Four scales on this wiki use the word level; the launch page states which is which.
