Ensemble Forecasting Methods for WFM

Ensemble Forecasting Methods for WFM covers the practical construction of multi-model forecast systems that outperform any single model. Ensemble methods — bagging, boosting, stacking, and weighted combination — are the dominant approach in modern forecasting competitions and increasingly appear in production WFM systems.

Why Ensembles Beat Single Models

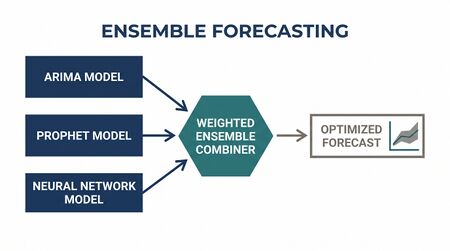

Ensemble forecasting: combining multiple models for better accuracy

No single forecasting model dominates across all contact center conditions. ARIMA captures linear autocorrelation well but misses nonlinear patterns. Prophet handles holidays and changepoints but struggles with high-frequency intraday patterns. Gradient-boosted trees capture complex feature interactions but require careful feature engineering and can overfit short time series.

The theoretical foundation comes from Bates and Granger (1969), who proved that a weighted combination of two forecasts outperforms the individual forecasts whenever the forecasts are not perfectly correlated — which they never are in practice. The mechanism is bias-variance tradeoff:

• High-bias models (e.g., linear regression) underfit complex patterns but produce stable predictions
• High-variance models (e.g., deep neural nets) capture complexity but are sensitive to training data
• Ensembles average out variance while maintaining sufficient complexity to reduce bias

The M4 and M5 forecasting competitions confirmed this empirically: the top performers were overwhelmingly ensembles, not individual models.

Ensemble Architectures

Model Selection vs Model Combination

Approach	Description	When to Use
Model selection	Pick the single best model per series/segment	Few series, strong prior knowledge of data behavior
Equal-weight combination	Average all model outputs	No holdout data for weight optimization
Optimized-weight combination	Learn weights from holdout performance	Sufficient holdout data (8+ weeks recommended)
Stacking (meta-learner)	Train a second model on base model outputs	Large datasets, complex interactions between model errors

Model combination almost always beats model selection because it hedges against the risk that your "best" model in the validation period is not actually best in the future.

Bagging (Bootstrap Aggregation)

Bagging trains multiple instances of the same model on bootstrapped samples of the training data, then averages predictions.

WFM application: Train 50 instances of a gradient-boosted tree on bootstrapped samples of historical contact volume. Average the 50 predictions. This reduces the variance of tree-based models substantially.

Implementation:

from sklearn.ensemble import BaggingRegressor
from sklearn.tree import DecisionTreeRegressor

bagging_model = BaggingRegressor(
    estimator=DecisionTreeRegressor(max_depth=10),
    n_estimators=50,
    max_samples=0.8,      # 80% of training data per bootstrap
    max_features=0.8,      # 80% of features per bootstrap
    random_state=42
)
bagging_model.fit(X_train, y_train)
predictions = bagging_model.predict(X_test)

Boosting (XGBoost, LightGBM)

Boosting trains models sequentially, each correcting the errors of the previous. XGBoost and LightGBM are the dominant implementations for tabular data.

WFM application: Boosted trees are strong at capturing the interaction between day-of-week, time-of-day, holiday proximity, marketing events, and seasonal patterns.

Feature engineering for WFM volume forecasting:

Feature Category	Examples
Calendar	Day of week, month, week of year, is_weekend, is_month_end
Lag	Volume at t-1, t-7, t-14, t-28, t-364
Rolling statistics	7-day rolling mean, 7-day rolling std, 28-day rolling mean
Holiday	Distance to nearest holiday, holiday type encoding
External	Marketing spend, product launch flags, weather, billing cycle
Interaction	Day-of-week × hour-of-day (captures intraday shape variation)

Implementation:

import lightgbm as lgb

params = {
    'objective': 'regression',
    'metric': 'mae',
    'learning_rate': 0.05,
    'num_leaves': 31,
    'min_child_samples': 20,
    'feature_fraction': 0.8,
    'bagging_fraction': 0.8,
    'bagging_freq': 5,
    'verbose': -1
}

train_data = lgb.Dataset(X_train, label=y_train)
valid_data = lgb.Dataset(X_val, label=y_val, reference=train_data)

model = lgb.train(
    params,
    train_data,
    num_boost_round=1000,
    valid_sets=[valid_data],
    callbacks=[lgb.early_stopping(50)]
)

Stacking (Meta-Learner)

Stacking uses a second-level model to learn the optimal combination of base model predictions. The meta-learner takes base model outputs as features and learns when each model performs well.

Architecture:

1. Level 0 (base models): ARIMA, Prophet, LightGBM, linear regression
2. Level 1 (meta-learner): Ridge regression or gradient-boosted tree trained on out-of-fold predictions from base models
3. Output: Meta-learner prediction

Critical implementation detail: Base model predictions for the meta-learner must be generated via cross-validation (out-of-fold), not on the training set. Using training-set predictions causes information leakage and inflated weights on overfit models.

from sklearn.model_selection import KFold
import numpy as np

def generate_oof_predictions(model_class, X, y, n_folds=5):
    """Generate out-of-fold predictions for stacking."""
    kf = KFold(n_splits=n_folds, shuffle=False)  # Time series: no shuffle
    oof_preds = np.zeros(len(X))

    for train_idx, val_idx in kf.split(X):
        model = model_class()
        model.fit(X[train_idx], y[train_idx])
        oof_preds[val_idx] = model.predict(X[val_idx])

    return oof_preds

# Generate OOF predictions from each base model
oof_arima = generate_oof_predictions(ARIMAWrapper, X, y)
oof_lgbm = generate_oof_predictions(LGBMWrapper, X, y)
oof_prophet = generate_oof_predictions(ProphetWrapper, X, y)

# Stack into meta-features
meta_features = np.column_stack([oof_arima, oof_lgbm, oof_prophet])

# Train meta-learner
from sklearn.linear_model import Ridge
meta_model = Ridge(alpha=1.0)
meta_model.fit(meta_features, y)

Note for time series: Standard k-fold cross-validation violates temporal ordering. Use expanding-window or sliding-window cross-validation instead of random splits.

Practical Ensemble Pipeline

Step-by-Step Construction

Step 1: Prepare Data

• Extract features (calendar, lag, external)
• Split into train (70%), validation (15%), test (15%) — chronologically, never randomly
• Apply same preprocessing to all splits

Step 2: Train Base Models (3-5 recommended)

Model	Strengths	WFM Role
ARIMA/SARIMAX	Linear trends, seasonality, autocorrelation	Captures weekly/annual cycles
Prophet	Holidays, changepoints, multiple seasonalities	Handles holiday effects cleanly
LightGBM	Feature interactions, nonlinear patterns	Captures complex driver relationships
Linear regression	Simplicity, interpretability	Baseline; regularizes ensemble
Theta method	Strong at short horizons, robust	Stabilizes short-term forecasts

Step 3: Generate Validation Predictions

Run each model on the validation set. Collect predictions into a matrix.

Step 4: Optimize Combination Weights

Minimize MAE or CRPS on the validation set subject to weights summing to 1 and being non-negative:

from scipy.optimize import minimize

def ensemble_mae(weights, predictions_matrix, actuals):
    """Calculate MAE for weighted ensemble."""
    combined = predictions_matrix @ weights
    return np.mean(np.abs(combined - actuals))

# predictions_matrix: (n_samples, n_models)
n_models = predictions_matrix.shape[1]
initial_weights = np.ones(n_models) / n_models

result = minimize(
    ensemble_mae,
    initial_weights,
    args=(val_predictions, y_val),
    method='SLSQP',
    bounds=[(0, 1)] * n_models,
    constraints={'type': 'eq', 'fun': lambda w: np.sum(w) - 1}
)

optimal_weights = result.x

Step 5: Evaluate on Test Set

Apply optimized weights to test-set predictions. Compare ensemble MAPE/MAE against each individual model.

Step 6: Deploy

• Retrain all base models on train + validation data
• Apply fixed weights from Step 4
• Set up automated retraining and weight recalibration (monthly recommended)

Worked Example: Contact Center Volume Ensemble

Scenario: 500-seat contact center, forecasting daily call volume, 2 years of history.

Model	Validation MAPE	Test MAPE	Optimal Weight
SARIMAX	8.5%	9.1%	0.22
Prophet	7.9%	8.3%	0.18
LightGBM	7.2%	7.8%	0.35
Ridge Regression	9.1%	9.4%	0.10
Theta	8.8%	9.0%	0.15
Ensemble	6.0%	6.2%	—

The ensemble reduced test MAPE from 7.8% (best single model) to 6.2% — a 20% relative improvement. In a 500-seat center averaging 8,000 daily contacts, this is the difference between forecasting within ±496 contacts vs ±624 contacts.

Weight Stability and Recalibration

Ensemble weights are not permanent. Model relative performance shifts as:

• Contact patterns change (channel migration, product launches)
• Feature distributions drift (new marketing campaigns)
• Models degrade differently over time

Recalibration schedule:

• Weekly: Monitor individual model MAPEs and ensemble MAPE
• Monthly: Re-optimize weights on trailing 8-week holdout
• Quarterly: Evaluate whether to add/remove base models

Scoring Metrics for Ensemble Optimization

MAE (Mean Absolute Error): Most interpretable for WFM. "On average, the forecast is off by X contacts." Preferred for symmetric error distributions.

MAPE (Mean Absolute Percentage Error): Useful for comparing across series of different scales (small queue vs large queue). But penalizes over-forecasting and under-forecasting asymmetrically on low-volume periods. Avoid for series with intervals near zero.

CRPS (Continuous Ranked Probability Score): The gold standard for probabilistic forecasts. CRPS measures the quality of the full predicted distribution, not just the point forecast. If your ensemble produces prediction intervals (not just point estimates), optimize weights using CRPS.

Weighted MAPE: Volume-weighted MAPE gives more importance to high-volume intervals (where errors have more operational impact). Better than unweighted MAPE for scheduling decisions.

Bias: Track separately from accuracy. A forecast can have 5% MAPE with zero bias (errors evenly distributed) or 5% MAPE with +4% bias (consistently over-forecasting). Bias matters more for capacity planning; MAPE matters more for real-time.

When Not to Ensemble

• Fewer than 6 months of data: Insufficient validation data for reliable weight optimization. Use equal weights or a single well-chosen model.
• Single dominant pattern: If the data is purely linear with weekly seasonality, SARIMAX alone may match an ensemble. Complexity has maintenance cost.
• Real-time latency constraints: If intraday reforecasts must complete in seconds, running 5 models may be too slow. Pre-compute and cache.
• WFM vendor built-in: If your vendor (NICE, Verint, Genesys) has adequate forecasting, the marginal gain from a custom ensemble may not justify the engineering overhead.

Model Diversity and Correlation

Ensemble benefit is proportional to the diversity of base models. Two models that make the same errors in the same direction add no value when combined. Maximize diversity by:

• Mixing model families (statistical + ML + judgmental)
• Using different feature sets per model
• Training on different time horizons (short vs long history)
• Including at least one simple baseline (seasonal naive, linear regression) — these are uncorrelated with complex models

Measure diversity via prediction correlation matrix. If two models have correlation > 0.95, consider dropping one.

Organizational Adoption

Getting Buy-In for Ensemble Methods

WFM leaders often resist ensemble approaches because they appear complex. The key argument: ensembles are not about complexity — they are about risk reduction. A single model is a single point of failure. An ensemble hedges that risk.

Phased adoption path:

1. Month 1-2: Shadow ensemble. Run ensemble alongside current production forecast. Do not use ensemble for scheduling — just compare accuracy weekly.
2. Month 3-4: Parallel reporting. Report both single-model and ensemble accuracy to stakeholders. Let the data build the case.
3. Month 5-6: Pilot deployment. Use ensemble for one skill group or one site. Measure scheduling outcomes (SL, overstaffing) vs control group.
4. Month 7+: Full deployment. Roll out ensemble to all forecast series. Maintain single-model fallback for the first quarter.

What to show stakeholders:

• Side-by-side accuracy comparison (table and chart)
• Operational impact: "If we had used the ensemble last quarter, we would have avoided X understaffed days and saved $Y in overtime"
• Risk reduction: "The ensemble's worst week was 7.1% MAPE vs the single model's worst week of 12.3% MAPE"

Maintaining Ensembles in Production

Ensemble maintenance is more work than a single model — plan for it:

Task	Frequency	Time Required
Monitor individual model accuracy	Weekly	15 min (automated dashboard)
Review ensemble vs individual model accuracy	Weekly	15 min
Recalibrate ensemble weights	Monthly	1-2 hours
Retrain base models	Monthly	2-4 hours (mostly automated)
Evaluate adding/removing base models	Quarterly	4-8 hours
Full pipeline review (features, data, architecture)	Annually	1-2 days

If your team cannot commit to this maintenance cadence, start with a simpler approach: equal-weight combination of 2-3 models. This captures most of the ensemble benefit with minimal maintenance overhead.
