Service Chain Decomposition and Node Sourcing

Service chain decomposition breaks a service transaction into a small number of deliberately asymmetric nodes — differing in cost, customer exposure, proficiency requirement and elasticity — so that automation, sourcing tier and capacity-planning method can each be assigned per node rather than per queue. It is a response to a specific problem: cost-reduction targets large enough to require structural change cannot be met by optimising within an existing work design, and the conventional alternative — relocating whole roles to cheaper labour — degrades quality in a predictable and well-documented way.

The central claim is that sourcing tier is a property of the node, not of the queue or the client. Once work is decomposed, labour arbitrage becomes safe precisely where work is asynchronous, decomposable and fast to proficiency, and destructive where it is synchronous, judgment-bearing and consequential. A chain therefore reverses the usual instinct: rather than moving the specialist to cheaper labour, it shrinks the specialist's scope and relocates the fulfilment work around it.

This page covers node definition, the planning method each node requires, and the alignment of nodes to sourcing tiers. For the governing constraint on how much work automation actually removes, see Conservation of Labor. For why flexibility is a design problem rather than a budget problem, see Chaining and Flexibility Design.

Why deep cost-out forces decomposition

Incremental cost programmes — better rates, tighter schedules, marginal handle-time reduction — plateau because they optimise within the existing work design. Targets in the range of a quarter to a half of servicing cost cannot be met inside that envelope. They require one of two structural moves, and usually both:

1. Remove workload. Automate it out of existence, or shape demand so it never arrives.
2. Reprice workload. Move the portion that must remain human to structurally cheaper capacity, without the quality collapse that undecomposed relocation produces.

Conservation of Labor is the governing constraint on the first move. Work that is displaced rather than removed reappears as handoff coordination, rework, escalation or repeat contact. A chain design succeeds only if its front end genuinely destroys work: every seam added to the chain adds coordination work, so the design must remove more than its seams cost.

The second move is where decomposition earns its place. Relocating an undecomposed role sends the complex work with the simple work to the site carrying the longest learning curve, which is why quality complaints characteristically arrive some months after a migration and are attributed to site performance rather than to the choice of migration unit.

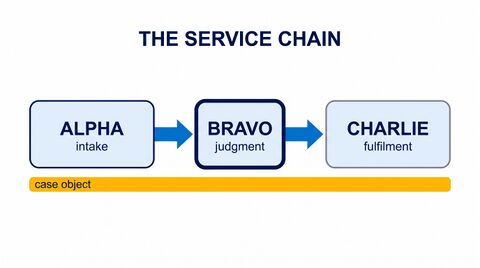

The three nodes. Transaction authority is the scarce and expensive one; the case object carries context across all three so no node re-derives what an earlier node established.

The nodes

Node names are conventional placeholders; what matters is the asymmetry between them. Three nodes cover the transaction lifecycle; work subject to a delivery constraint is treated separately below, because such a constraint is not a node.

Alpha — agentic intake. Automated first contact: triage, identification, data collection, clarification, and as capability matures, research, availability checking, pricing and policy lookup. Alpha's product is a pre-staged case — by the time a human sees the work, the setup is done. Alpha has a graduation path from pure triage, through assisted research, to pre-staged transaction, with full containment as the asymptote for eligible work.

Bravo — human transaction authority. The scarce, expensive, customer-facing specialist who verifies the pre-staged case, exercises judgment on exceptions, and executes the consequential and often irreversible act. The design objective at this node is specialist-minute minimisation: every minute of setup, research and wrap removed from Bravo is capacity created inside the existing specialist pool, which can be taken either as growth headroom or as headcount, according to strategy.

Charlie — asynchronous fulfilment. Non-customer-facing completion: documentation, follow-up, downstream processing. Deferred by nature, therefore able to absorb variance that synchronous work cannot, and the node where elastic low-cost capacity is genuinely appropriate. Charlie receives the case object with full context; nothing is re-derived.

Relation to front, mid and back office

Front, mid and back office is the established vocabulary in most service organisations, and the node view does not replace it. The two describe different things, and the relationship is worth stating explicitly because a design conversation conducted in two vocabularies becomes a conversation about terminology.

Front, mid and back office is an organisational decomposition: it describes where work sits and whether the customer is present. The node view is a transaction-lifecycle decomposition: it describes stages of a single piece of work and the automation readiness of each.

Conventional term	Node equivalent	What the finer cut adds
Front office — the live interaction that creates, changes or cancels a transaction, or supports a customer in disruption	Alpha and Bravo together	Separates the setup, research and pre-staging that automation can take from the judgment and authority it cannot
The contested middle — assistance and product support that is customer-facing but exercises no transaction authority	Alpha, or Charlie where it can be deferred	Gives this work a home, which the conventional split does not
Mid and back office — repeatable processing, settlement, invoicing, queue management	Charlie	Confirms the arbitrage target and identifies which parts are genuinely deferrable

Two consequences follow.

The conventional split treats the client-facing interaction as atomic, and the entire cost-out argument depends on dividing it. A model in which front office is indivisible can only decide whether front office stays in-house — it cannot express the move that matters, which is shrinking the transaction-authority scope by relocating the setup work around it.

The definitional argument that surrounds front, mid and back office has a structural cause. Organisations reliably struggle to classify assistance-type work — customer-facing, but creating no transaction. It is argued over because the three-way split has no category for it. Naming it as a distinct node resolves the argument rather than relitigating it.

Use the conventional vocabulary when the audience is organisational and the node vocabulary when the question is what automation and sourcing can actually do. State the mapping once, early, and the two stop competing.

Design principles

1. The case object is the unit of work. Context travels with the case; the customer never repeats themselves and no node re-derives what an earlier node established. The case object is also the measurement spine — chain-total minutes per resolved case is the quantity against which Conservation of Labor is audited.
2. Chain-level service commitments, not node-level ones. Optimising each node independently produces a chain that hits every internal target and still fails the customer. The commitment is end to end.
3. Specialist-minute minimisation is the objective function. Not headcount reduction as such, but capacity creation within the scarce pool.
4. Human verification must remain real. Where a human check sits downstream of automation, throughput pressure degrades it toward rubber-stamping. Automation misuse through over-reliance is a long-established finding, and it recurs in contemporary settings as mis-calibrated trust — workers over-relying on automated output precisely where it is weakest. Sampled deep verification and error-injection testing are what keep the check honest.
5. Elasticity is contractual. A low-cost node delivers its economics only if its commercial construct prices variability — capacity bands, surge terms — rather than fixed headcount floors that recreate the rigidity the chain was built to escape.

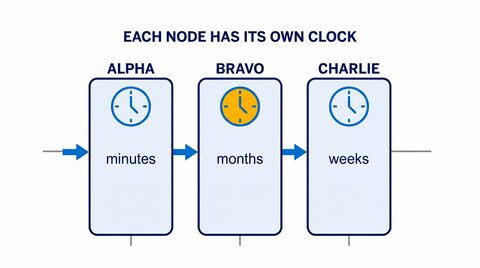

Each node is planned on a different clock. Applying one method — typically Erlang against a point forecast — across all three is the most common technical failure in chain implementation.

Planning physics by node

The nodes do not merely differ in cost. They require different capacity-planning methods, and applying one method across all three is the most common technical failure in chain implementation.

Node	Capacity is	Planned against	Method	Ramp
Alpha	Compute and orchestration	Containment and pre-staging rates, which are themselves uncertain and time-varying	Scenario repertoires; treat the rate as a random variable rather than a parameter	Near zero
Bravo	Scarce specialists	An arrival stream that is doubly stochastic by construction	Chance-constrained sizing or simulation of the full network	Months, gated by time to proficiency
Charlie	Elastic low-cost capacity	Backlog and work age, not instantaneous service level	Deferred-work and load-levelling models	Weeks

Work under a delivery constraint does not add a fourth row. It repeats these rows inside a restricted location set — see below.

Three consequences follow.

A chain is a tandem queueing network. Downstream arrivals are not independent — they are upstream completions — so arrival correlation propagates variance along the chain. Applying Erlang C node by node understates chain variance and overstates achievable service levels.

Automation makes the specialist's arrival stream doubly stochastic. Alpha's containment rate varies with intent mix, model behaviour and content changes, so the rate at which work reaches Bravo is a random variable rather than a parameter. Point-forecast staffing against such a stream systematically under-provisions the tail — the general result being that when the arrival rate is itself random, classical safety-staffing prescriptions must be revisited. See Doubly Stochastic Arrivals and Demand Variance Decomposition for how to measure the effect before designing against it.

Variance should be pushed deliberately toward the asynchronous tail. Deferred nodes trade service-level risk for load levelling. A chain designed so that variability accumulates at Charlie rather than at Bravo converts an expensive staffing problem into a cheap backlog problem.

Node sourcing

Each node has a natural tier. The failures are as informative as the alignments.

Node	Natural tier	Why	Characteristic failure
Alpha	Platform and compute, with a small high-capability exception desk	Not a location decision at all; capacity is compute, ramp is near zero	Counted as headcount reduction rather than as capacity creation, which forfeits the more valuable property
Bravo	Onshore, or a high-capability captive centre	Scarce, judgment-bearing, consequential, long ramp	Relocated on rate. This is the classic arbitrage failure: a seat fills quickly, a proficient specialist does not
Charlie	Low-cost captive or contracted vendor, on elastic terms	Asynchronous, decomposable, fast to proficiency, variance-absorbing	Fixed headcount floors in the contract, which neutralise the flex economics entirely

The reframe this produces. Conventional sourcing attempts to arbitrage the specialist and discovers that speed to seat and speed to proficiency are different goods bought under one name. Chain-based sourcing shrinks the specialist's scope and arbitrages the fulfilment work instead — which is both cheaper and safer, because the relocated scope is the one that reaches competence quickly and tolerates asynchronous handling.

Chainability differs by tier, and this bears on which nodes can share capacity. A captive centre shares employer, systems and skill taxonomy, so connecting it into the wider estate is a configuration change; a dedicated vendor requires a commercial negotiation for the same connection; a shared or multi-client vendor cannot be redirected at all. See Chaining and Flexibility Design.

A delivery constraint does not carve one node out of the estate. Because it applies to every node of the affected work, it forces a complete parallel chain inside the eligible boundary, unable to exchange capacity with the rest.

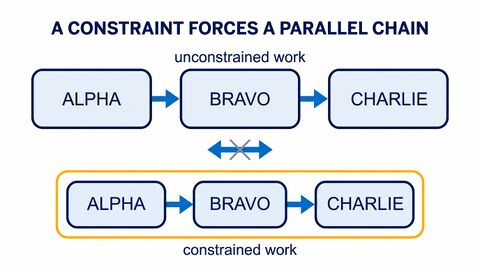

Delivery constraints and parallel chains

Some work cannot be delivered from some places — data sovereignty, citizenship or clearance requirements, regulatory location terms, contractual delivery commitments. This is an eligibility constraint, not a node. It is a property that attaches to work, shrinks the set of locations available to it, and can attach to any node.

The consequence is more demanding than a carve-out. Because the constraint applies to all nodes of the affected work, a restricted population does not remove one node from the estate — it forces a complete parallel chain inside the eligible boundary: its own intake, its own transaction authority, its own fulfilment, at whatever scale the constrained volume supports.

That parallel chain carries three penalties at once, and they compound rather than substitute:

1. Isolation. It can neither send work to nor receive work from ineligible capacity, so it has none of the pooling or chaining benefit available to the rest of the estate.
2. Scale. Constrained populations are usually small, and small pools run structurally lower occupancy at the same service level.
3. Extended ramp. Clearance, vetting or accreditation lead time sits on top of the ordinary proficiency curve.

Two treatments follow. Plan it as a standalone system — estate-wide occupancy targets do not apply to it, and a constrained pool planned at them is where service fails first. Report its buffer separately, so the cost appears as a consequence of the constraint rather than as inefficiency.

And size the constrained volume before accepting a cost target. Volume that cannot move must be excluded from the addressable base, which raises the reduction required from the remainder proportionally. This is a precondition for agreeing a target, not a detail of executing one.

For the treatment of eligibility alongside the other sourcing variables, see Sourcing Design Axes: Node and Client Ownership.

Preconditions and enablers

Two structural components are frequently treated as parallel initiatives when they are in fact prerequisites for a chain functioning at all.

A capability abstraction layer. Where servicing requires proficiency across multiple deep legacy systems, those systems are themselves the pooling constraint — a specialist skilled on one platform cannot take work from another, and the market for multi-platform specialists is thin. An agent-facing workspace that normalises the underlying systems converts several system-segregated pools toward one, lowers time to proficiency, and is what makes cross-system research at the Alpha node feasible. Without it, Bravo cannot pool and Alpha cannot research.

An orchestration layer. The case object is not a document; it is a state machine passed between nodes with its context intact. Orchestration is the substrate that makes it real, and without it every seam leaks context and the chain fails its conservation test.

Two further designs are composable alternatives rather than preconditions: an elastic capacity layer that staffs the base and buys the tail through a fixed core, a flexible scheduled layer and a certified surge pool (see Three-Pool Architecture); and service-catalogue productisation, which converts bespoke commitments into tiered offers so that work routes by complexity rather than by client identity, collapsing the eligibility fragmentation that prevents pooling.

Failure modes

#	Failure mode	What settles it
1	Conservation violation — the chain displaces work rather than removing it, and seams cost more than automation saves	Chain-total handle minutes per resolved case against a single-touch baseline, measured on the case object rather than on node handle time
2	Context-loss tax — each seam leaks context, producing rework and repeat contact	Repeat-contact rate and re-derivation time per seam; case-object completeness audits
3	Occupancy regression — stripping wrap from the specialist role removes recovery time embedded in it, raising sustainable occupancy requirements	Restate the sustainable-occupancy ceiling for the wrap-free role before go-live; monitor attrition and error rates against it
4	Rubber-stamp verification — human-in-the-loop degrades under throughput pressure	Error-injection testing and sampled deep verification with published catch rates
5	Arithmetic optimism — node-level queueing math overstates chain performance	Simulation or chance-constrained sizing of the full tandem network before committing to service levels
6	Elasticity fiction — the low-cost node's contract contains headcount floors	Contract-term audit: what fraction of that node's cost is genuinely variable at 30, 60 and 90-day horizons
7	Constrained-chain underfunding — the isolated parallel chain planned at estate-wide occupancy	Plan it as a standalone system; report its buffer separately
8	Attribute rot — supply routing operating on stale capability data	Attribute freshness commitments and routing-outcome audits by segment

Open questions

The model rests on several quantities that are not well established in published evidence, and practitioners should treat them as hypotheses to verify rather than as parameters to assume:

• Containment and pre-staging rates achieved by agentic automation in complex, high-consequence transaction domains — as distinct from simple-intent domains, where published figures cluster and are not transferable
• The economics of splitting a synchronous interaction: under what conditions specialist-time reduction survives the added coordination cost
• Commercial constructs that deliver genuinely elastic vendor capacity, and the premium elasticity commands over fixed commitment
• Governance of chain-level service commitments across mixed internal and vendor nodes

Maturity Model considerations

• Levels 1–2. Work is planned and sourced as whole roles. Cost programmes are rate negotiations, and automation is scoped as deflection.
• Level 3. Decomposition begins, usually as call-splitting or back-office separation. Nodes exist but are still planned with a single method.
• Level 4. Node-specific planning methods are applied, chain-total measurement replaces node metrics, and sourcing decisions are taken at node level.
• Level 5. Automated and human capacity are planned as one chain, the constrained parallel chain is funded for its isolation, and elasticity is a priced commercial term rather than an assumption.
