Causal Inference in Workforce Management

Causal inference is the discipline of determining whether a relationship between variables is causal — not merely correlational. In workforce management, causal questions are everywhere: did the chatbot actually reduce call volume, or did volume drop for unrelated reasons? Did the new coaching program improve AHT, or did the agents who received coaching already have a downward trend? Did the schedule change cause attrition, or did attrition cause the schedule change?

Standard WFM analytics answers what happened. Causal inference answers why it happened and what would happen if — the counterfactual reasoning that separates strategic decision-making from pattern-matching.

Overview

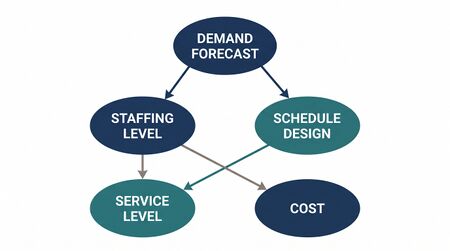

Causal DAG for workforce management attribution

WFM data is observational, not experimental. Contact centers rarely run randomized controlled trials on staffing levels or routing policies — the operational risk is too high. But observational data is riddled with confounders. AHT drops when a coaching program launches, but it also drops when easier call types surge. Volume falls after chatbot deployment, but it also falls during seasonal lulls.

Causal inference provides a toolkit for extracting causal signals from observational data when experiments are impossible, impractical, or too slow:

• Directed Acyclic Graphs (DAGs) make causal assumptions explicit and testable
• Do-calculus formalizes interventional reasoning — what happens when you do something, not merely observe it
• Difference-in-differences exploits natural experiments (parallel trends between treated and untreated groups)
• Instrumental variables isolate exogenous variation to identify causal effects
• Regression discontinuity exploits threshold-based policies to create quasi-experiments

Mathematical Foundation

Structural Causal Models and DAGs

A Structural Causal Model (SCM) consists of:

• A set of variables $V=\{V_1,\dots ,V_n\}$
• A set of structural equations: $V_i=f_i(\text{Pa}(V_i),U_i)$ where $\text{Pa}(V_i)$ are the parents (direct causes) of $V_i$ and $U_i$ is exogenous noise
• A directed acyclic graph (DAG) encoding the causal relationships

Example DAG for a chatbot deflection analysis:

Chatbot Launch → Volume Reduction
Chatbot Launch → AHT Change (different call mix)
Seasonal Trend → Volume Reduction (confounder)
Marketing Campaign → Volume Increase (confounder)

The DAG reveals that a naive regression of volume on chatbot status is confounded by seasonal trends. The DAG also reveals the adjustment set needed to identify the causal effect: condition on seasonality and marketing, but not on AHT change (which is a mediator, not a confounder).

The Do-Operator

Pearl's do-operator distinguishes observing from intervening:

• $P(Y|X=x)$ — the probability of Y given that we observe $X=x$
• $P(Y|\text{do}(X=x))$ — the probability of Y given that we set $X=x$ by intervention

These are generally different. Observing high staffing levels might correlate with high volume (because managers staff up when they expect high volume). Intervening to set high staffing does not cause high volume.

The adjustment formula (back-door criterion): if a set of variables $Z$ blocks all back-door paths from $X$ to $Y$, then:

$P(Y|\text{do}(X=x))=\sum _{z}P(Y|X=x,Z=z)P(Z=z)$

This converts an interventional query into an observational estimand — computable from data.

Difference-in-Differences (DiD)

DiD exploits the parallel trends assumption: absent treatment, the treated and control groups would have followed parallel trajectories.

${\tau }_{\text{DiD}}=({\overline{Y}}_{T,\text{post}}-{\overline{Y}}_{T,\text{pre}})-({\overline{Y}}_{C,\text{post}}-{\overline{Y}}_{C,\text{pre}})$

where T is the treated group and C is the control group. The first difference removes group-level fixed effects; the second difference removes time trends common to both groups.

In regression form:

$Y_{it}={\beta }_0+{\beta }_1\cdot {\text{Treated}}_i+{\beta }_2\cdot {\text{Post}}_t+{\beta }_3\cdot ({\text{Treated}}_i\times {\text{Post}}_t)+{ϵ}_{it}$

The coefficient ${\beta }_3$ is the causal effect of the treatment.

Instrumental Variables (IV)

When unobserved confounders exist and cannot be adjusted for, an instrumental variable $Z$ can identify the causal effect if:

1. $Z$ affects the treatment $X$ (relevance)
2. $Z$ affects the outcome $Y$ only through $X$ (exclusion restriction)
3. $Z$ is not confounded with $Y$ (independence)

The IV estimator:

${\hat{\beta }}_{\text{IV}}=\frac{\text{Cov}(Z,Y)}{\text{Cov}(Z,X)}$

In two-stage least squares: first regress $X$ on $Z$ to get $\hat{X}$, then regress $Y$ on $\hat{X}$.

Regression Discontinuity (RD)

When treatment is assigned based on a threshold rule — agents with QA scores below 70 receive coaching, those above do not — the sharp RD design compares outcomes just above and just below the threshold:

${\tau }_{\text{RD}}=\underset{x\downarrow c}{\lim }\mathbb{𝔼}[Y|X=x]-\underset{x\uparrow c}{\lim }\mathbb{𝔼}[Y|X=x]$

where c is the cutoff. Near the threshold, assignment is effectively random (an agent scoring 69 vs. 71 is essentially comparable), creating a local experiment.

WFM Applications

Measuring Chatbot Deflection Impact

Question: The chatbot launched in March. Volume dropped 12%. How much was the chatbot vs. seasonal decline?

Method: Difference-in-differences. Use a parallel queue (one without chatbot eligibility) as the control group.

	Pre-Launch (Jan-Feb)	Post-Launch (Mar-Apr)	Difference
Chatbot-eligible queue	45,000/month	38,000/month	−7,000
Control queue	22,000/month	20,500/month	−1,500
DiD estimate			−5,500

The chatbot causally deflected approximately 5,500 interactions per month (a 12.2% causal reduction). The remaining 1,500 decline was seasonal, common to both queues.

Parallel trends check: Plot both queues for 6 months pre-launch. If they track in parallel, the DiD assumption is credible. If they diverge, the estimate is suspect.

Attributing AHT Changes to Coaching

Question: Agents who completed the new coaching program have 15% lower AHT. Is that causal?

Problem: Managers select struggling agents for coaching (selection bias) — but struggling agents also have the most room for improvement (regression to the mean).

Method: Regression discontinuity. If coaching is assigned to agents below a QA threshold:

1. Plot AHT improvement against QA score
2. Look for a discontinuity at the threshold
3. The jump at the threshold estimates the causal effect of coaching, free of selection bias

If the jump is 8% (not 15%), then 7 percentage points of the naive estimate were selection effects.

Quantifying Schedule Change Effects on Attrition

Question: After switching from fixed to flexible schedules, attrition dropped from 35% to 28%. Causal?

Method: Instrumental variables. Use the timing of the software upgrade that enabled flexible scheduling as an instrument:

1. The upgrade date affected which sites got flexible schedules (relevance — sites with the upgrade switched)
2. The upgrade date plausibly affects attrition only through the schedule change (exclusion — IT upgrade timing is unrelated to local labor market conditions)
3. Estimate: IV regression yields a causal attrition reduction of 5.2 percentage points (95% CI: 2.8 to 7.6)

The naive before-after comparison (7pp) overstated the effect because the labor market was also improving.

Worked Example

Full DAG for a WFM Intervention Analysis:

A center launches a "real-time adherence nudge" system that sends automated messages to off-adherence agents. AHT drops by 6% in the month after launch.

Step 1 — Build the DAG:

Nudge System → Adherence Improvement → AHT Reduction
Nudge System → Agent Stress → AHT Increase (opposing path)
Seasonal Call Mix → AHT Reduction (confounder)
New Hire Cohort → AHT Reduction (confounder — new hires ramping up)

Step 2 — Identify adjustment set: To estimate the total causal effect of the nudge system on AHT, adjust for {Seasonal Call Mix, New Hire Cohort} but not for Adherence Improvement (it is a mediator — adjusting for it blocks the causal path).

Step 3 — Estimate:

Using the adjustment formula on 6 months of daily data, controlling for call mix (percent billing/tech/general) and tenure distribution:

Failed to parse (syntax error): {\displaystyle \hat{\tau} = -3.8\% \quad \text{(95\% CI: } -5.1\% \text{ to } -2.5\%\text{)}}

The nudge system causally reduced AHT by 3.8%, not the naive 6%. The remaining 2.2% was attributable to seasonal call mix shifts and new hire maturation.

Step 4 — Decompose the mechanism: Mediation analysis (blocking the adherence path) shows 2.9pp flows through adherence improvement and 0.9pp through an unmeasured path (possibly agents working faster when they know they are monitored — a Hawthorne-adjacent effect).

Maturity Model Position

• Level 2 (Developing): Before-after comparisons without controls ("we launched X and Y changed")
• Level 3 (Advanced): Controlled comparisons; basic A/B testing where feasible; recognition of confounders
• Level 4 (Leading): Formal causal models (DAGs) for major WFM interventions; DiD and RD designs routinely applied
• Level 5 (Innovating): Full SCM framework; do-calculus for automated intervention planning; causal discovery algorithms mining the causal graph from observational data

See Also

• Bayesian Methods for Workforce Forecasting
• Simulation in Workforce Management
• Machine Learning for Workforce Forecasting
• Data-Driven Decision Making in WFM
• Operations Research in Workforce Management

References

• Pearl, J. (2009). Causality: Models, Reasoning, and Inference. 2nd ed. Cambridge University Press.
• Angrist, J.D. & Pischke, J.S. (2009). Mostly Harmless Econometrics. Princeton University Press.
• Imbens, G.W. & Rubin, D.B. (2015). Causal Inference for Statistics, Social, and Biomedical Sciences. Cambridge University Press.
• Cunningham, S. (2021). Causal Inference: The Mixtape. Yale University Press.
• Hernán, M.A. & Robins, J.M. (2020). Causal Inference: What If. Chapman & Hall/CRC.
